Details
Last Updated: Jul. 31, 2023
Posted: Aug. 19, 2022
Supported Connection Devices
| Manufacturer | Product Name | Series | Note |
|---|---|---|---|
| YASKAWA Electric Corporation | AC Servo Drive | Σ-7 Series | SGD7W-xxxA20A (Two-axis SERVOPACK with MECHATROLINK-III) |
| Σ-X Series*1 | SGDXW-xxxA40A (Two-axis SERVOPACK with MECHATROLINK-4/III) |
*1“MP Ethernet / MECHATROLINK Driver" Ver. 1.19.14 or later is required to connect to Σ-X series.
Target HMI
| Series | Resolution | Display unit type of the sample project file*2 | Screen Editor |
|---|---|---|---|
| GP4000 Series SP5000 Series | 640 x 480 dot（VGA） | Box Module：SP-5B10 Display Module：SP-5500TP | GP-Pro EX Ver. 4.03.100 or later |
| ST6000 Series | GP-Pro EX Ver. 4.09.400 or later | ||
| SP5000 Series SP5000X Series | 800 x 480 dot（WVGA）*3 | Box Module：SP-5B10 Display Module：SP-5400WA | GP-Pro EX Ver. 4.03.100 or later |
| ST6000 Series | GP-Pro EX Ver. 4.09.300 or later | ||
| STM6000 Series | GP-Pro EX Ver. 4.09.350 or later | ||
| GP4000 Series | 320 x 240 dot（QVGA） | GP-4301T | GP-Pro EX Ver. 4.03.100 or later |
| SP5000 Series SP5000X Series ST6000 Series | 1280 x 800 dot (WXGA) | ST-6600WA | GP-Pro EX Ver. 4.09.300 or later |
| ST6000 Series | 1024 × 600 dot (WSVGA) | ST-6500WA | GP-Pro EX Ver. 4.09.300 or later |
*2If you use the other models, you can change a model in the GP-Pro EX project file. For details, please refer to the Technical Guide.
*3For WVGA (800×480 pixels),there is function button area at the right of the screen. Please read the manual, "Functions Added to Sample Project File for SP5000 Wide Model".
Features
- Monitoring and editing of parameters.
- Parameter back-up and restore, possible with SD card or USB stick.
- Alarm and alarm history display
- Show amplifier and motor information
- Motion system, servo status and input signal
- Supporting wiring check
- Setup of various functions
- Execute test operation (JOG and Program JOG)
- Monitoring Trace Graph
- Maintenance(Monitor, QR Code)
- Indirect device designation supports function changes of multiple axis (up to 16)
We do not guarantee that the operation of this sample will be uninterrupted or error-free.
Terms of use / Cautions
Please acknowledge the following terms of use before you use our download service.Download of any file signifies your agreement to the terms of use.
Terms and conditions
Download file
For SP-5500TP / VGA (640x480)
21.77 MB (22,827,140 Byte)
For SP-5400WA / WVGA (800x480)
23.86 MB (25,022,871 Byte)
For GP-4301T / QVGA (320x240)
5.24 MB (5,498,879 Byte)
For ST-6500WA / WSVGA (1024x600)
25.36 MB (26,586,948 Byte)
For ST-6600WA / WXGA (1280x800)
33.27 MB (34,890,127 Byte)
Update History
[Rev.03] (Jul. 31, 2023)
- Supports Yaskawa Electric’s Σ-X-Series
- Update 5-2-1 Target HMI Devices
[Rev.02] (Aug. 19, 2022)
- Supports ST6000 Series
- Update 5-2-1 Target HMI Devices
[Rev.01] (Apr. 28, 2015)
- Supports SP5000 Series
[Rev.00] (Dec. 25, 2014)
New
Summary

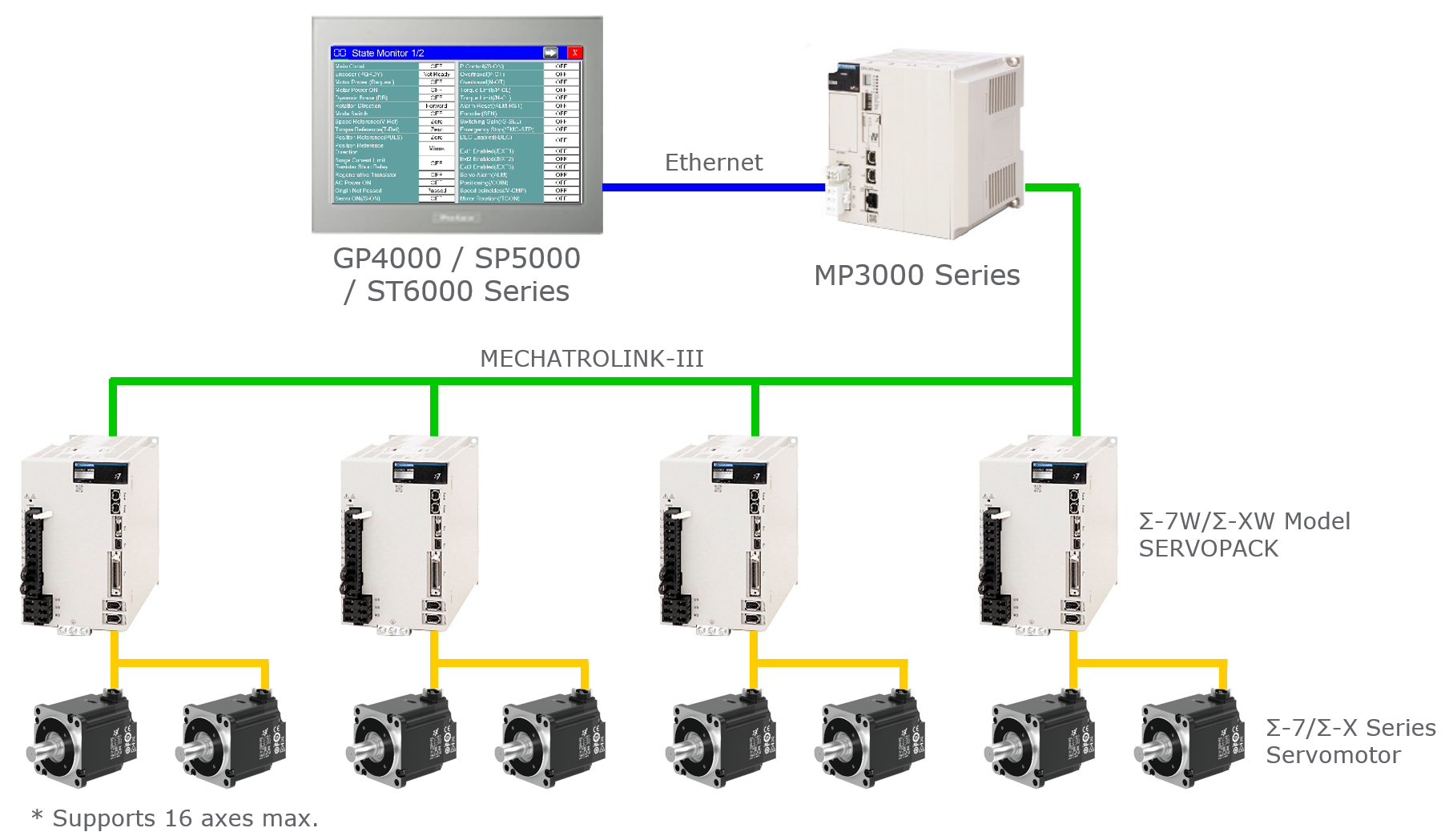

This sample project file is for the sample project to connect with the AC Servo Drive Σ-7W and Σ-XW SERVOPACK with MECHATROLINK-III Communications by Yaskawa Electric Corporation.
