Graphics - HVAC Symbols
Overview:
GP4000, SP5000, SP5000X, ST6000, STM6000, PS5000, PS6000, PC/AT
Target Size:
No restrictions.

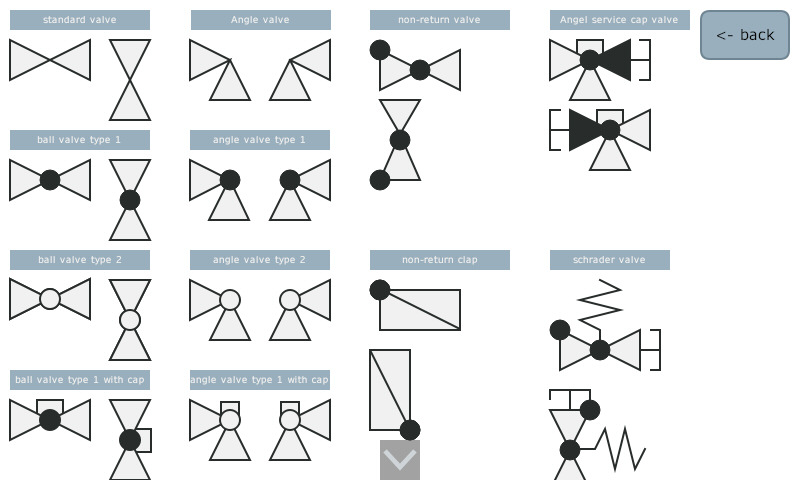

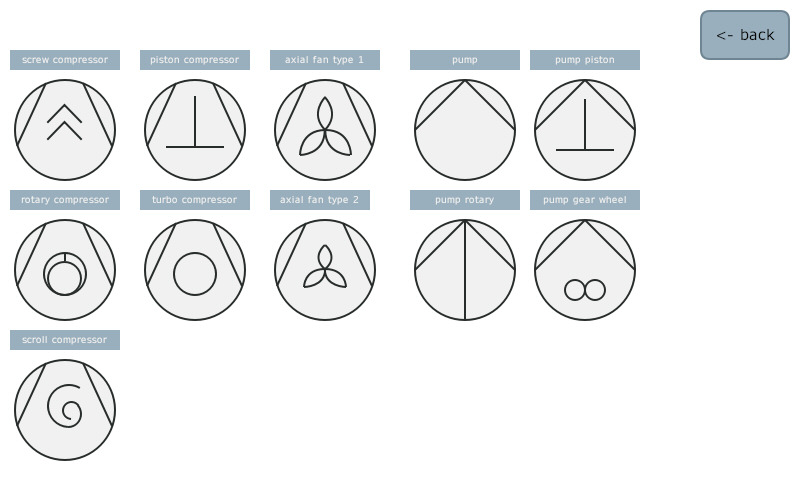

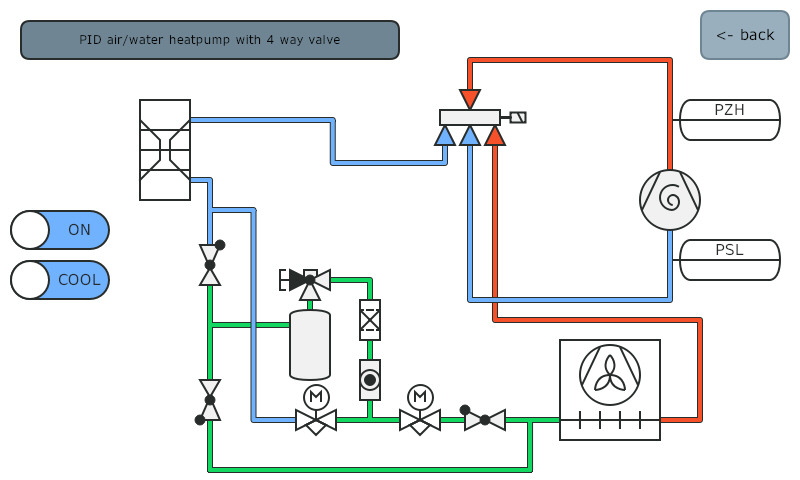

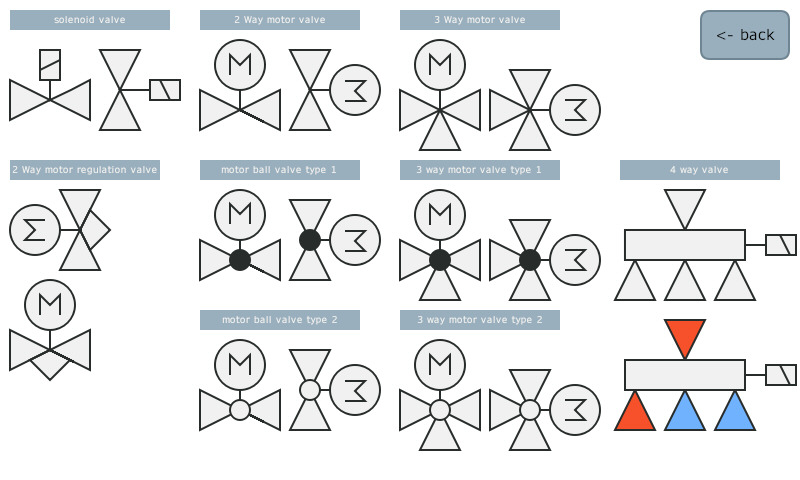

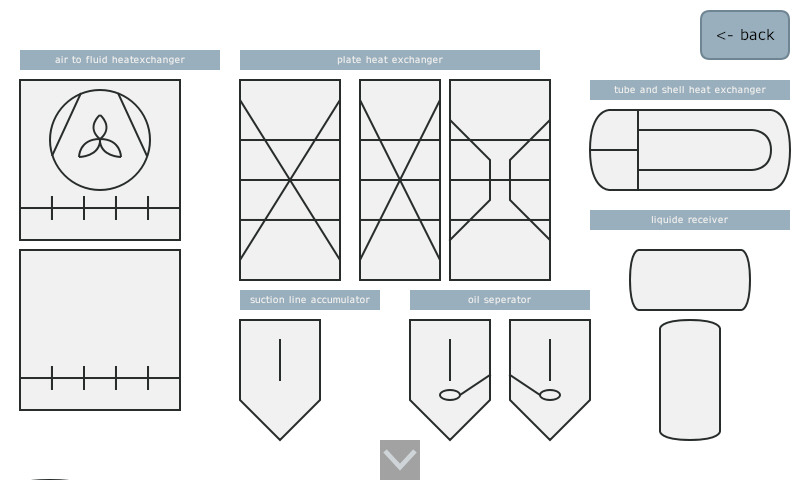

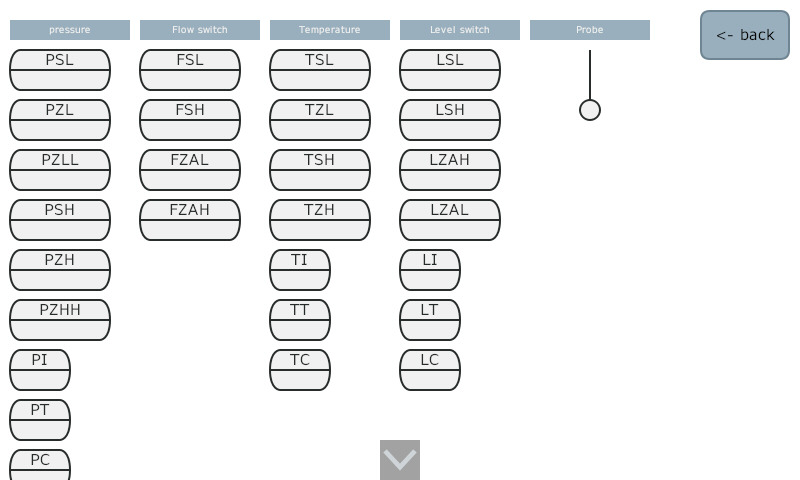

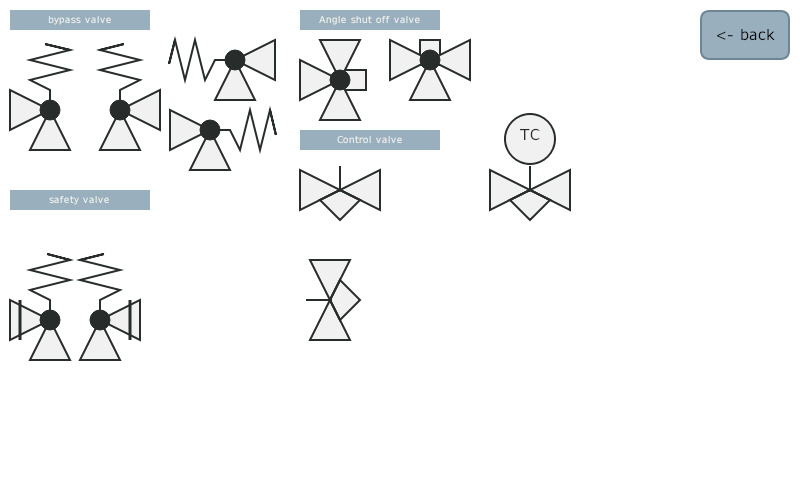

Symbol samples to be able to make an HVAC flow chart easily.
All symbols are made by the BLUE standard shapes, so you can change the shape such as the color, and line thickness In conjunction with the value change.
- The "Graphic - HVAC Symbols" tutorial video is here
GP4000, SP5000, SP5000X, ST6000, STM6000, PS5000, PS6000, PC/AT
Target Size:
No restrictions.
