Overview:

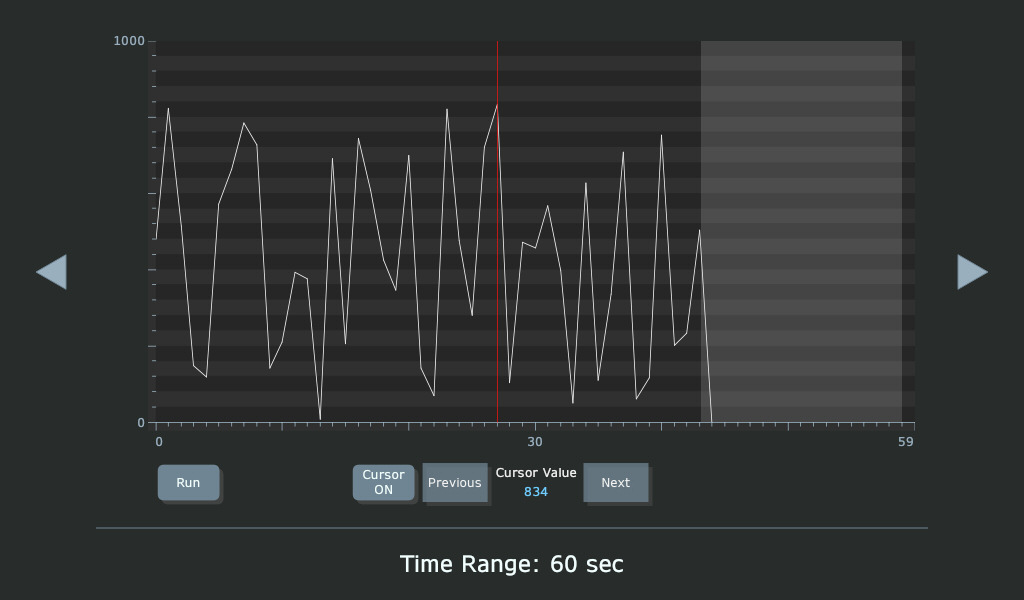

This is a Block Trend that redraws a trend graph at regular intervals.

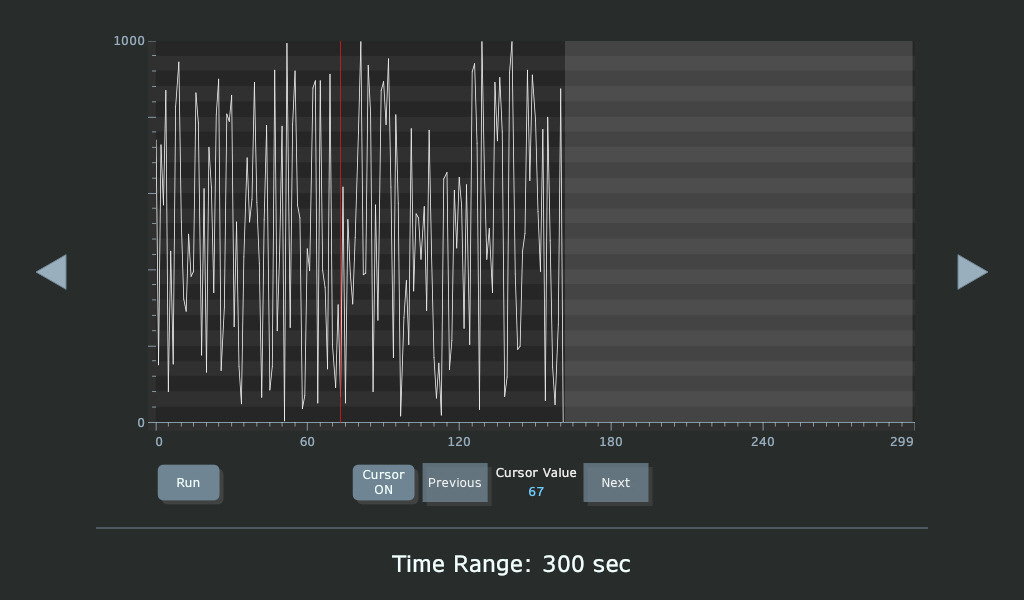

Five Content Screens are available for each interval: 60, 120, 180, 240, and 300 sec.
A Cursor is implemented to read the graph values in 1-second increments.
Target Model:
SP5000, SP5000X, ST6000, STM6000, PS5000, PS6000, PC/AT
Target Size:
Recommended for resolution higher than 800 by 480 pixels.
Remarks:
The method for copying to a user project is as follows.
1. Copy the Variable List and Converter with the same name as the Content Screen of the desired interval.
2. Bind the variable named "Data" in the Variable List to the PLC address used by the user.
3. The screen script [0002] of the copied Content Screen contains an automatically generated data script for operation checks, so delete it.
4. Call the user screen with Content Display. (Because a View Box is used, this allows for some scaling on the user screen.)
This sample project is for large-screen HMIs with more than 800x480 pixels.
A manual with more details will be available soon..
