[Azbil Corporation (Former: Yamatake Corporation)] Network Instrumentation Modules Model NX Series

Summary

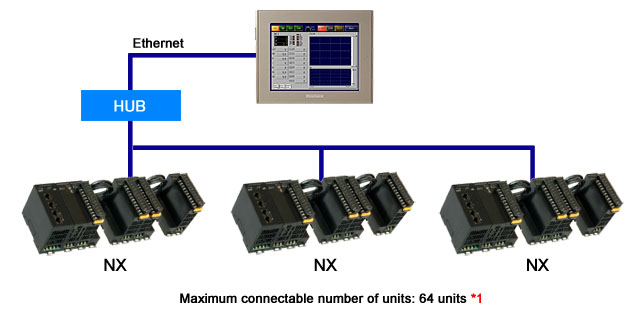

You can connect Network Instrumentation Module, Controller Module NX Series manufactured by Azbil Corporation (Former: Yamatake Corporation) with GP4000 / LT4000 Series to have multi-channel surveillance and many other functions.

Details

Supported Connection Devices

Target HMI

Features

• CH Monitor A
  Provided as a compact part for minimal display. Use for collective monitoring of multiple channels.
• CH Monitor B
  In addition to multiple monitor functions, this component allows users to edit SP settings.
• CH Parameter Settings A
  Setup functions include PV, SP, and MV values monitor, LSP, Manual MV, PID, OL/OH, and three modes (Run/Ready, Auto/Manual, AToff/ATon). Parameters can be set easily using this functionality.
• CH Settings/Trend
  Setup functions include PV, SP, and MV (MV is only provided for large-type) values monitor, trend graph display, alarm monitor, LSP, Manual MV, PID, OL/OH, three modes (Run/Ready, Auto/Manual, AToff/ATon), and four Event values. You can set parameters while looking at the trend graph.
• Alarm monitoring
  Displays all activated alarms in a list. By showing details of the cause of an alarm together with troubleshooting information, downtime can be reduced.
• Alarm History
  Along with the activated alarms, the history of alarms that have already been cleared is displayed in a list. The display color differs according to the severity of the error. By showing details of the cause of an alarm together with troubleshooting information, downtime can be reduced.

How to Install

These download files are self-extracting files.
Double-click on the file to open a sample file and the PDF file of an explanatory material.
