[DENSO WAVE INCORPORATED] Robot Controller RC8

Summary

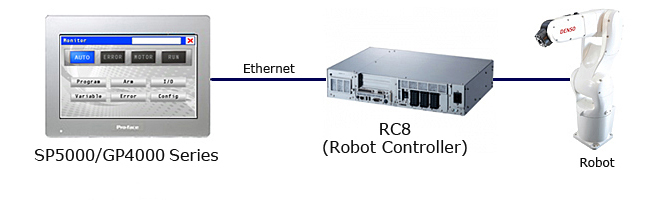

You can connect SP5000/GP4000 series to a robot-controller “RC8” made by DENSO WAVE INCORPORATED and display a state of a robot. Without the teaching pendant of the robot, you can see the current state of the robot to some degree.

Details

Supported Connection Devices

Manufacturer	Supported Model
DENSO WAVE INCORPORATED.	RC8 Controller

Target HMI

Related Units	SP5000 Series	WVGA (800×480)	Box Module: SP-5B10,SP-5B40^1 Display Module: SP-5400WA^1
	SP5000 Series	VGA (640×480)	Box Module: SP-5B10,SP-5B40^1 Display Module: SP-5500TP^1
	GP4000 Series	VGA (640×480)	GP-4501T GP-4501TW^1 GP-4401T^1
	GP4000 Series	QVGA (320×240)	GP-4301T GP-4301TW^*1
Notes	GP-Pro EX Ver. 3.50.000 or later is required. For SP5000 Series, GP-Pro EX Ver. 4.03.000 or later is required. We do not guarantee that the operation of this sample will be uninterrupted or error-free. The PDF file of an explanatory material is also compressed into this file. For WVGA (800×480 pixels),there is function button area at the right of the screen. Please read the manual," Functions Added to Sample Project File for SP5000 Wide Model ".

*1 When this sample is used with Open Box (SP-5B40) and display modules of different resolutions, to change the setting of display unit in GP-Pro EX is required.

Features

Status Monitor of the Controller
Confirm the List View and Running Status of the program, which are registered in the Controller.
The line that actually runs can be displayed on the program monitor screen.
Input / Output Monitor (Forced Set /Reset function by conditions)
Monitor current position and check the setting value of the Robot.
Confirm and register the variables.
Display error code and the details.
Monitor a system version of the controller.
Perform the JOG operation.

How to Install

These download files are self-extracting files.
Double-click on the file to open a sample file and the PDF file of an explanatory material.

Download file

SP5000 Series WVGA(800×480)

connection_sp5000_wv_DswRc8_e_Rev02.exe

3.77 MB (3,949,457 Byte)

SP5000 Series VGA (640×480)

connection_sp5000_v_DswRc8_e_Rev01.exe

2.70 MB (2,833,697 Byte)

GP4000 Series VGA (640×480)

connection_gp4000_v_DswRc8_e_v211.exe

2.10 MB (2,202,284 Byte)

GP4000 Series QVGA (320×240)

connection_gp4000LT3000_qv_DswRc8_e_v211.exe

2.68 MB (2,810,558 Byte)

Terms of use / Cautions

Please acknowledge the following terms of use before you use our download service.
Download of any file signifies your agreement to the terms of use.
Terms and conditions

Update history

For SP5000 Series

VGA:[Rev. 01] (2015/4/28)

WVGA:[Rev. 02] (2015/4/28)

Modified version released

WVGA:[Rev. 01] (2014/7/18)

For GP4000 Series

[V211] (2012/12/14)
