[Hitachi Industrial Equipment Systems] Inverter NE-S1 Series

Summary

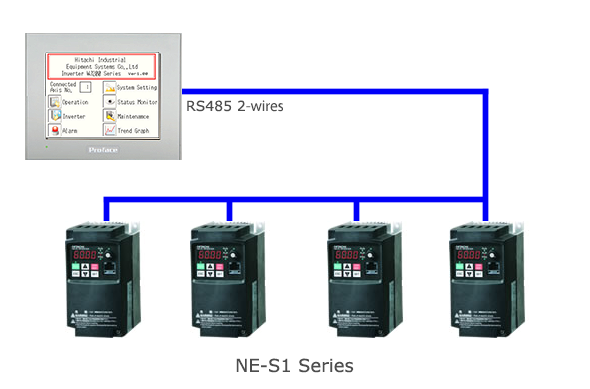

You can connect GP4000, LT4000M series to the inverter “NE-S1 Series” made by Hitachi Industrial Equipment Systems Co., ltd and display a state of the inverter.

Details

Supported Connection Devices

Manufacturer	Supported Model
Hitachi Industrial Equipment Systems Co.,ltd	Inverter NE-S1 Series

Target HMI

Related Units	GP4000 Series	LT4000M Series
Resolution	QVGA (320 x 240 pixels)
Related Models	GP-4301T	LT-4301TM
Notes	GP-4301T, LT-4301TM support this connection device sample. If you use the other models, you can change a model in the GP-Pro EX project file. For further information, please refer to the manual included. GP-Pro EX Ver. 3.12.000 or later is required. We do not guarantee that the operation of this sample will be uninterrupted or error-free. If you use the other models, you can change a model in the GP-Pro EX project file. For further information, please refer to the manual included.

Features

Easy connection with the inverter
Parameter setting (e.g. acceleration and deceleration) from the touch panel
Monitoring alarm information on the inverter
Checking a change in the state with a trend graph
Registration and selection of a speed level (from 4 levels) for inverter operation
Registration of descriptions of alarms which may be generated in the inverter
Monitoring the state and operation

How to Install

These download files are self-extracting files.
Double-click on the file to open a sample file and the PDF file of an explanatory material.

Download file

LT4000M Series

connection_LT4301TM_q_HTCindust_NE-S1_e.exe

1.13 MB (1,181,143 Byte)

GP4000 Series

connection_GP4301T_q_HTCindust_NE-S1_e.exe

1.12 MB (1,179,189 Byte)
