PFXPL2Bxxxxx4xxx00 (Edge Box PC)

Standard product information
Family
Pro-face Edge Box
Model
PFXPL2Bxxxxx4xxx00
Global Code
PFXPL2Bxxxxx4xxx00
Product Features
Edge Box PC
Industrial PC specifications
Supported OS
Windows 10 IoT Enterprise 2016 LTSB (Software Version: 3.0 or less) *
Windows 10 IoT Enterprise 2019 LTSC (Software Version: 4.0 or later) *
* OS Version depends on the Software version
CPU
Intel Atom E3930 1.3 GHz
Main Memory
4 GB / 8 GB, DDR3L 1600 MHz, SO-DIMM SDRAM
Storage Memory
eMMC (64GB / 128GB) x 1*1
Graphic Accelerator
Intel HD Graphics
Video Memory
Up to 2 GB, Shared system memory
Graphics
Full HD TFT (1,920 x 1,080 pixels)

1Optional interface mounted type only. For use with HDD or SDD, an option unit (PFXZPEADHDD2) that is separately sold is required. HDD and SSD can be selected for secondary storage only.

Electrical specifications
Rated Input Voltage
DC: 12 to 24 Vdc ±20 %
AC: 100 to 240 Vac (Option)
Power Consumption
25W
In-Rush Current
2.03 A
Environmental specifications
International Safety Standards
CCCCEC-TickEACKCUL,cUL (61010) Listed
Surrounding Air Temperature
0 to 55 °C [32 to 131 °F]
When using HDD/internal expansion option: 0 to 45 °C [32 to 113 °F]
Storage Temperature
-30 to +70 °C [-22 to 158 °F]
Ambient Humidity
10 to 95 % RH (Wet bulb temperature: 40 °C [104 °F] max. - no condensation)
Storage Humidity
10 to 95 % RH (Wet bulb temperature: 40 °C [104 °F] max. - no condensation)
Pollution Degree
For use in Pollution Degree 2 environment
Air pressure (altitude range)
2,000 m [6,561 ft.] max.
Vibration resistance
[Operation for products with SSD storage device] 5 to 500 Hz: 2 Grms
[Operation for products with HDD storage device] 5 to 500 Hz: 1 Grms
Concussion resistance
IEC 60068-2-27 Ea test
Electromagnetic Compatibility (EMC)
Immunity to High Frequency Interference
Electromagnetic Emissions Class A
Interface specifications
Serial (COM1)
RS-232C (non isolated), Connector: D-Sub 9 pin (plug)
Serial (COM2)
RS-232C / 422 / 485 (non isolated), Connector: D-Sub 9 pin (plug)
USB Type A
Conforms to USB 3.0 (Type A) x 2
Conforms to USB 2.0 (Type A) x 2
Ethernet (LAN1)
10 / 100 / 1000 Mbit/s (RJ-45 Modular jack)
Ethernet (LAN2)
10 / 100 / 1000 Mbit/s (RJ-45 Modular jack)
Video
Display Port x 2
Internal Expansion
mini PCIe x 1
Structural specifications
Cooling method
Passive heat sink
External dimensions
Optional interface non-mounted type: W38 x H150 x D187 mm [W1.50 x H5.91 x D7.36 in.]
Optional interface mounted type: W54 x H150 x D187 mm [W2.13 x H5.91 x D7.36 in.]
Weight
Optional interface non-mounted type: 1.25 kg [2.75 lb]
Optional interface mounted type: 1.3 kg [2.86 lb]
Dimensions
External installation diagram

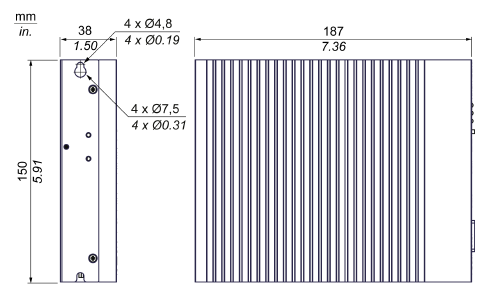

Optional Interface Non-mounted Type

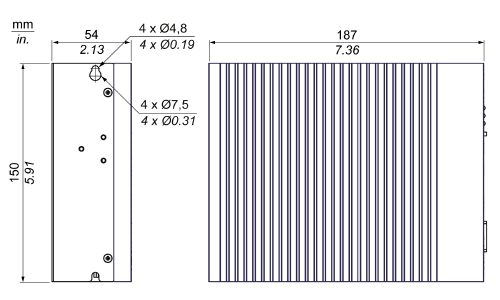

Optional Interface Mounted Type




External dimensions with attached cable / Descriptions

Descriptions

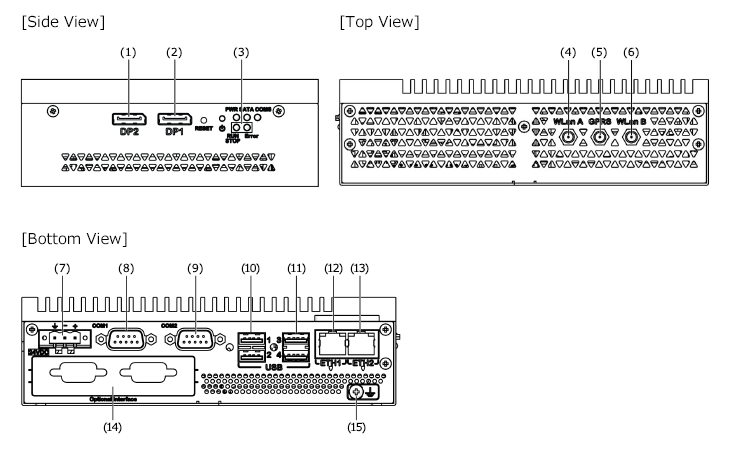

Optional Interface Non-mounted Type

(1) DisplayPort 2 (2) DisplayPort 1 (3) LEDs and power/reset button (4) SMA connector for the WLan A external antenna (5) SMA connector for the GPRS/4G external antenna (6) SMA connector for the WLan B external antenna (7) DC power connector (8) COM1 port RS-232 (non-isolated) (9) COM2 port RS-232 (non-isolated), RS-422/485 (non-isolated) (10) USB1 and USB2 (USB 2.0) (11) USB3 and USB4 (USB 3.0) (12) ETH1 (10/100/1000 Mb/s) IEEE1588 (13) ETH2 (10/100/1000 Mb/s) IEEE1588 (14) Ground connection pin

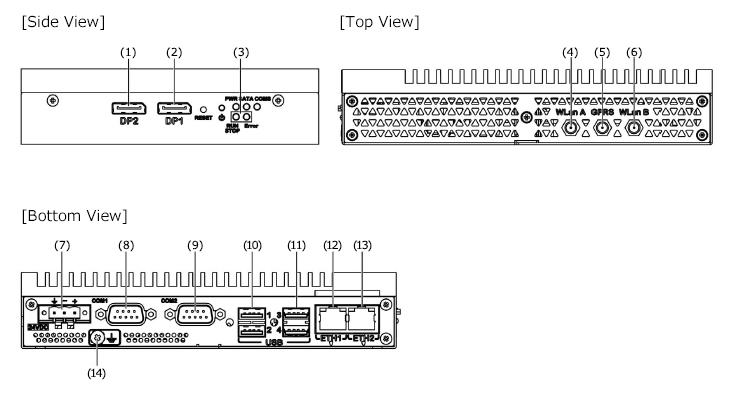

Optional Interface Mounted Type

(1) DisplayPort 2 (2) DisplayPort 1 (3) LEDs and power/reset button (4) SMA connector for the WLan A external antenna (5) SMA connector for the GPRS/4G external antenna (6) SMA connector for the WLan B external antenna (7) DC power connector (8) COM1 port RS-232 (non-isolated) (9) COM2 port RS-232 (non-isolated), RS-422/485 (non-isolated) (10) USB1 and USB2 (USB 2.0) (11) USB3 and USB4 (USB 3.0) (12) ETH1 (10/100/1000 Mb/s) IEEE1588 (13) ETH2 (10/100/1000 Mb/s) IEEE1588 (14) Optional interface (15) Ground connection pin
