PFXSTM6B00DIOT (STM6000 Edge Box HMI)

Standard product information
Family
Pro-face Edge Box
Model
PFXSTM6B00DIOT
Global Code
PFXSTM6B00DIOT
Product Features
Edge Box HMI
Electrical specifications
Rated input voltage
24 Vdc
Input voltage limits
19.2 to 28.8 Vdc
Allowable voltage drop
5 ms or less
Power consumption
Max.6.8 W
When power is not supplied to external devices: 3.5 W
In-rush current
30 A or less
Noise immunity
Noise Voltage : 1,000 Vp-p
Pulse Duration : 1 µs
Rise Time : 1 ns
(via noise simulator)
Voltage endurance
1,000 Vac for 1 minute (between power terminal and FG terminal)
Insulation resistance
500 Vdc, 10 MΩ or more (between power terminal and FG terminals)
Environmental specifications
International safety standards
CEUKCAUL,cUL (508) ListedMarine ABSMarine RINAEACKCC-Tick
Surrounding air temperature
0 to 60 °C [32 to 140 °F]
Storage temperature
-20 to +60 °C [-4 to 140 °F]
Ambient humidity
10% to 90% RH (Non condensing, wet bulb temperature 39 °C [102.2 °F] or less)
Storage humidity
10% to 90% RH (Non condensing, wet bulb temperature 39 °C [102.2 °F] or less)
Dust
0.1 mg/m3 (10-7 oz/ft3) or less (non-conductive levels)
Pollution degree
For use in Pollution Degree 2 environment
Corrosive gases
Free of corrosive gases
Air pressure (altitude range)
800 to 1,114 hPa (2,000 m [6,561 ft.] above sea level or less)
Vibration resistance
IEC/EN 61131-2 compliant
5 to 9 Hz single amplitude 3.5 mm [0.14 in.]
9 to 150 Hz fixed acceleration: 9.8 m/s2
X, Y, Z directions for 10 cycles (approx. 100 min.)
Concussion resistance
IEC/EN 61131-2 compliant 147 m/s2, X, Y, Z directions for 3 times
Electrical fast transient/burst
IEC 61000-4-4
2 kV: Power port (display unit)
1 kV: Signal ports
Memory
Application memory
Editor : BLUE Open Studio    FLASH EPROM 220MB
Local Storage    FLASH EPROM 220MB
Removable System    No*1
Backup memory
Editor : BLUE Open Studio    -
Battery    Replaceable battery / Primary battery for clock data backup

1This memory is used for HMI Runtime and project data. This local storage is used for file storage. Alarm history data, event log, and data logging are stored into local storage. (Using FLASH EPROM)

Interface specifications
Serial (COM1)
Asynchronous Transmission: RS-232C / 422 / 485, Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits, Parity: None, Even or Odd, Data Transmission Speed: 2,400 to 115,200 bps, Connector: D-Sub 9 pin (plug)
USB (Type A)
Conforms to USB 2.0 (Type A) x 1
Power supply voltage: 5 Vdc ±5 %
Output Current: 500 mA/port
Maximum transmission distance : 5 m [16.4 ft.]
USB (micro-B)
Conforms to USB 2.0 (micro-B) x 1, Maximum transmission distance : 5 m [16.4 ft]
Ethernet
IEEE802.3i / IEEE802.3u, 10BASE-T / 100BASE-TX, Connector: Modular jack (RJ-45) x 2
Structural specifications
Grounding
Functional grounding: Grounding resistance of 100 Ω or less, 2 mm2 (AWG 14) or thicker wire, or your country's applicable standard
(SG and FG are connected inside the product).
Cooling method
Natural air circulation
Structure
IP20
External dimensions
W145.6 x H108.23 x D41.4 mm (5.73 x 4.26 x 1.63 in) (excluding protrusions)
Weight
0.27 kg (0.6 lb) or less
Dimensions

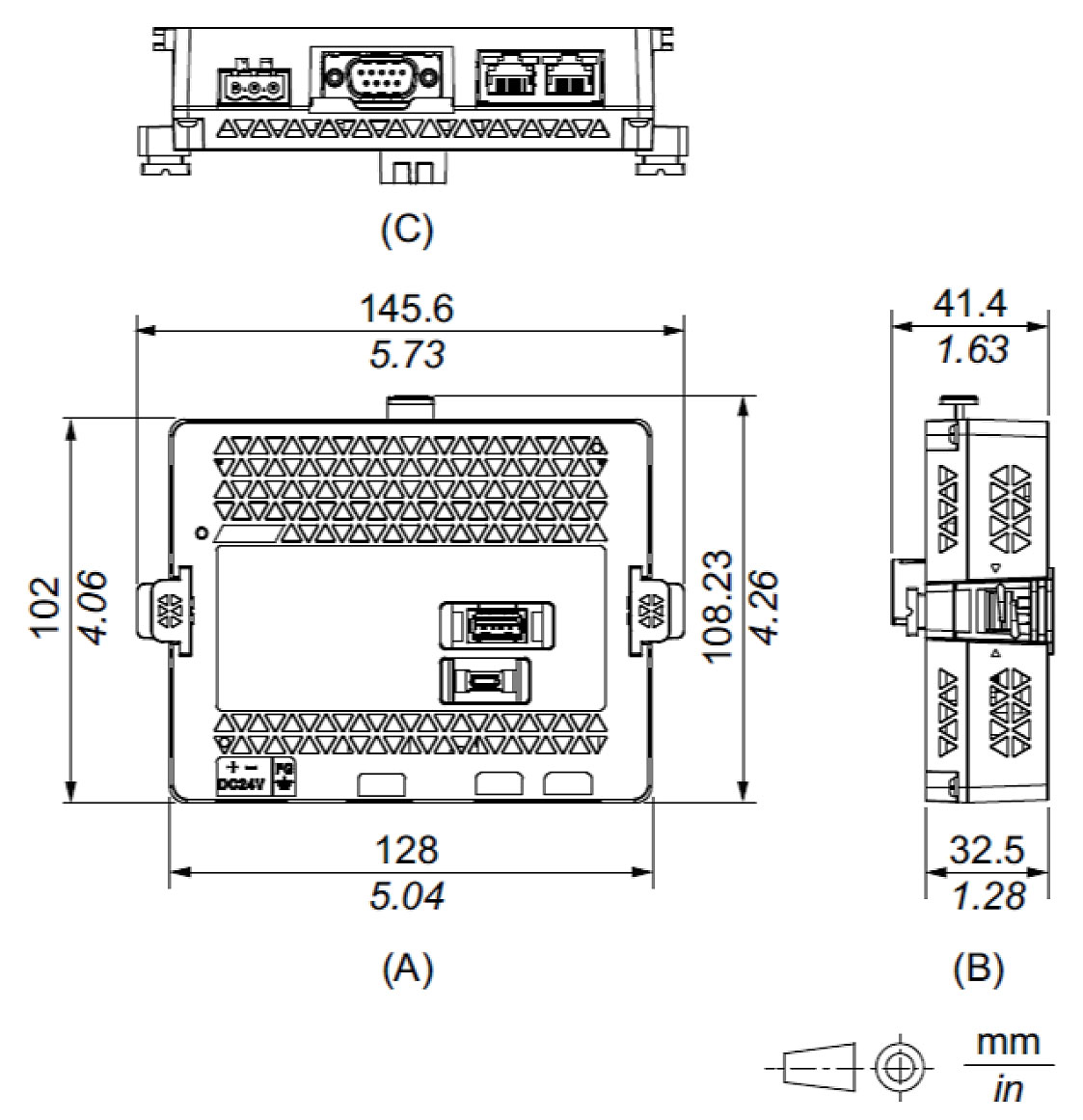

External dimensions
  1. Front
  2. Right
  3. Bottom

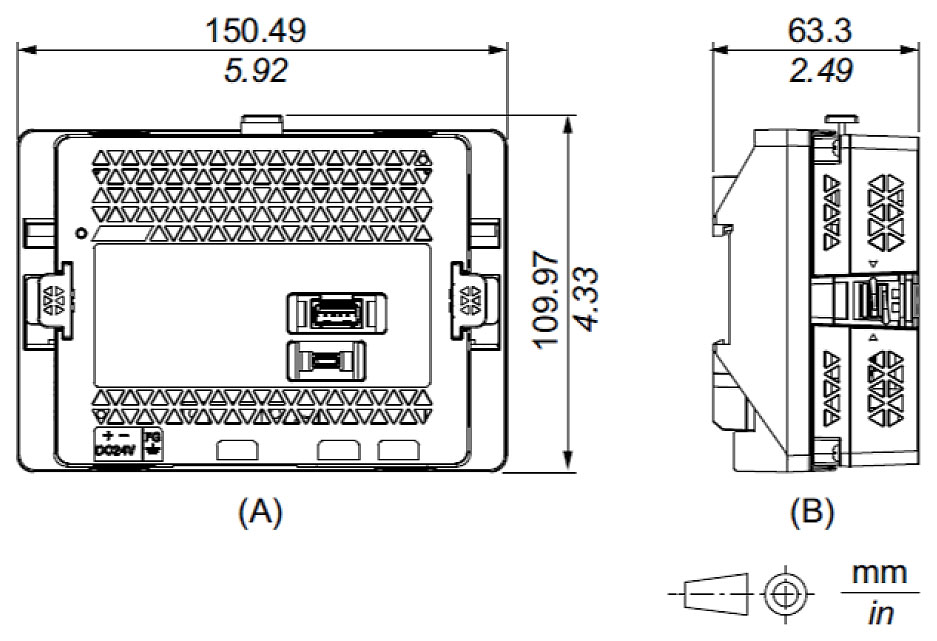

When Installation Adapter Attached

  1. Front
  2. Right

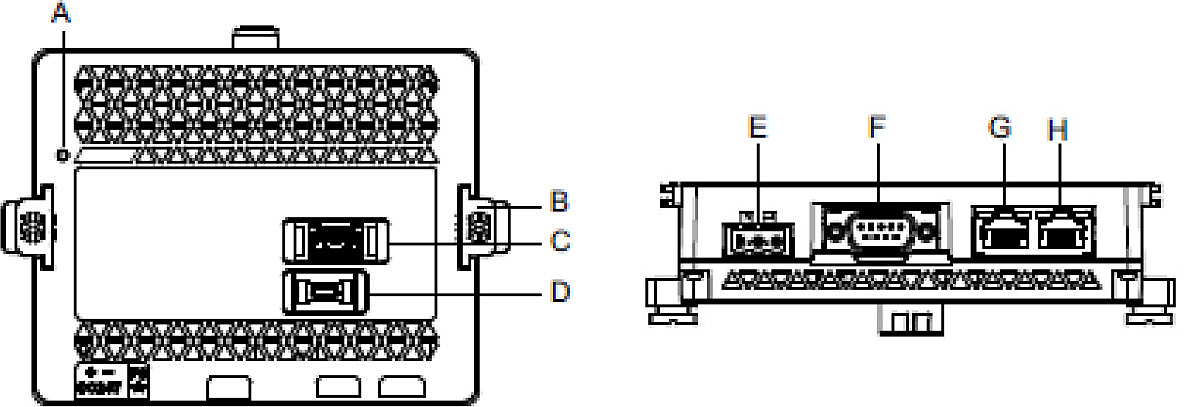

Parts Identification

  1. Status LED
  2. Bumper
  3. USB(Type A) interface
  4. USB(Type B) interface
  5. Power plug connector
  6. Serial interface(COM1)
  7. Ethernet interface(ETH1)
  8. Ethernet interface(ETH2)
