PFXPB1BAxxxxxxxN00

Standard product information
Family
Industrial PC (IPC)
Series
PS4000 Series
Size
Built-in
Model
PFXPB1BAxxxxxxxN00
Global Code
PFXPB1BAxxxxxxxN00
Product Features
Box Type 2 slot (2 PCI)
End of sales
2016/11/25
End of repair
2021/04/28
Repair Service Remark
-
Replacement option 1
Replacement code 1
To be confirmed
Replacement code 1 comment
Please contact your [local Pro-face office]

Industrial PC specifications
Supported OS
[ Core 2 Duo ]
HDD or SSD: Windows XP Professional SP3 / Windows 7 Ultimate
CF: Windows Embedded Standard 2009 / Windows Embedded Standard 7

[ Atom ]
HDD or SSD: Windows XP Professional SP3
CF: Windows Embedded Standard 2009*1
CPU
Intel Core2 Duo P8400 2.26 GHz / Intel Atom N270 1.6 GHz
L2 cache memory
Core 2 Duo: 3MB / Atom: 512 KB
Main Memory
Core2 Duo: 2 GB to 8 GB (DDR3 1066 MHz) / Atom: 1 GB to 3 GB (DDR2 533 MHz)
Chipset
Core2 Duo: GM45 / Atom: 945GME
Graphic Accelerator
Core2 Duo: Intel Graphics Media Accelerator (GMA) 4500 MHD / Atom: Intel Graphics Media Accelerator 950
Video Memory
Core 2 Duo: Up to 384 MB / Atom: 224 MB*2
Graphics
RGB: 300 MHz RAMDAC, up to 2,048 x 1,536 @70 Hz (QXGA) including 1,920 x 1,080 @85 Hz (HDTV)
DVI: 1,920 x 1,080
Color Depth: 32 bit (Maximum)

1For details on languages supported by pre-installed operating systems, read the manual, "The List of OS Pre-installed Languages for Multi-language".
For Windows Embedded Standard 2009, 4 GB CFast or more is required. For Windows Embedded Standard 7 Premium, 8 GB CFast or more is required.
End of sale for Windows XP model: Nov. 25, 2016.

2Reserved from main memory

Display specifications
Display Size
Built-in
Electrical specifications
Rated Input Voltage
24 Vdc ±25 %
Power Consumption
Core2 Duo: 90 W / Atom: 60 W*1
In-Rush Current
Typ. 7A, 50A < 300μs

1The value does not include the power supplied to the devices for expansion slots or USB devices, which you attach. The product's maximum power consumption including the power supplied to them is 130W.

Environmental specifications
International Safety Standards
CEC-TickEACATEXMarine GLKCANSI/CSA (UL508+1604) Listed
Surrounding Air Temperature
0 to 50 °C [32 to 122 °F]*1
Storage Temperature
-20 to +60 °C [-4 to 140 °F]
Ambient Humidity
10 to 85 % RH (Wet bulb temperature: 29 °C [84.2 °F] max. - no condensation)
Storage Humidity
10 to 85 % RH (Wet bulb temperature: 29 °C [84.2 °F] max. - no condensation)
Pollution Degree
For use in Pollution Degree 2 environment
Air pressure (altitude range)
2,000 m [6,561 ft.] max.
Vibration resistance
[Operation (continuous) for 6 Fc products with SSD or CF Card storage device] 2 to 9 Hz: 1.75 mm [0.07 in.], 9 to 200 Hz: 4.9 m/s2
[Operation (continuous) for products with HDD storage device] 5 to 100 Hz: 1.225 m/s2
[Operation (occasional) for products with SSD or CF Card storage device] 2 to 9 Hz: 3.5 mm [0.14 in.], 9 to 200 Hz: 9.8 m/s2
[Operation (occasional) for products with HDD storage device] 5 to 100 Hz: 2.450 m/s2
[Merchant Navy (continuous)] 3 to 13.2 Hz: 1 mm [0.04 in.], 13.2 to 100 Hz: 6.86 m/s2
Concussion resistance
147 m/s2 / 11 ms (IEC 60068-2-27 Ea test)
Electromagnetic Compatibility (EMC)
Immunity to High Frequency Interference
Electromagnetic Emissions Class A

1Surrounding air temperature depends on what feature or option you use.
When you use Panel IPC without FAN unit (AtomTM N270)
0 to 45 °C [32 to 113 °F] when using Gigabit Ether
5 to 40 °C [41 to 104 °F] when using Slide-in Slot
When you use Panel IPC with FAN unit (CoreTM2 Duo P8400)
5 to 50 °C [41 to 122 °F] when using Slide-in Slot

Interface specifications
Serial (COM1)
RS-232C (D-Sub 9-pin, plug)
Serial (COM2)
RS-232C (D-Sub 9-pin, plug)
Serial (COM3)
RS-232C / 422 / 485 (Optional)
USB Type A
Conforms to USB 2.0 (Type A) x 5*1
Ethernet (LAN1)
10 / 100 / 1000 Mbit/s (RJ-45 Modular jack)
Ethernet (LAN2)
10 / 100 / 1000 Mbit/s (RJ-45 Modular jack)
Video
DVI-I x 1
DVI-D x1 (Optional)
Serial ATA
Slide-in Disk: (HDD / SSD) x 1
Slide-in Slot: (HDD or SSD or DVD-RW) x 1
IDE
4 GB or 8 GB CF Card (Type-I) x1
Expansion slot
PCI x 2

1Maximum 500 mA per connection for USB2, USB4
Maximum 1 A per connection for USB1, USB3, USB5

Structural specifications
Cooling method
Core2 Duo: Fan kit with filter. Fan speed is controlled by internal temperature.
Fan does not operate unless internal temperature reaches the set temperature.
Atom: Passive heat sink, Fanless operation*1
Protective structure
IP20
External dimensions
Core 2 Duo: W136 x H270 x D251 mm [W5.35 x H10.62 x D9.88 in.], Atom: W121 x H270 x D251 mm [W4.76 x H10.62 x D9.88 in.]
Weight
Core2 Duo: 6 kg [13.23 lb], Atom: 5 kg [11.03 lb]

1Fan kit with filter
Fan speed is controlled by internal temperature. Fan does not operate unless internal temperature reaches the set temperature.

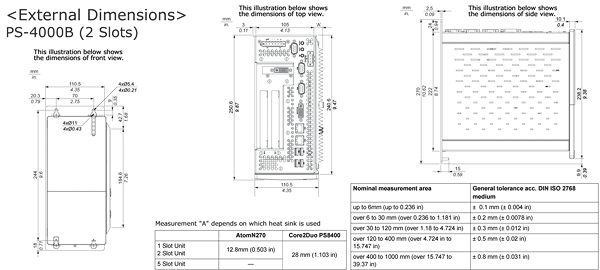

Dimensions
External installation diagram
