PFXPPD5600TA (PS-D5600TA)

Standard product information
Family
Industrial PC (IPC)
Series
PS5000 Series
Size
12"
Model
PFXPPD5600TA
Global Code
PFXPPD5600TA
Product Features
12" Display
End of sales
2023/06/30*1
End of repair
2023/06/30*2

1-

2-

Replacement option 1
Replacement code 1
None
Replacement code 1 comment
Industrial PC specifications
Graphics
XGA TFT (1,024 x 768 pixels)
Display specifications
Display Type
TFT Color LCD
Display Size
12"
Display Colors
16.7 million colors
Backlight
LED
Backlight service life
50,000 hrs. at 25 °C [77 °F]
Brightness Control
Step less adjustment
Touch Panel Type
Resistive Film (single touch)
Touch Panel Resolution
2,048 x 2,048
Electrical specifications
Rated Input Voltage
DC: 24 Vdc ±20 %
AC: 100 to 240 Vac (Option)*1
Power Consumption
17.87 W or less

1For use at 100 to 240 Vac, an optional AC / DC power adapter (PFXZPSPUAC2, PFXZPBPUAC2) that is separately sold is required.

Environmental specifications
International Safety Standards
CCCCEKCUL,cUL (60950) ListedUL,cUL (61010) ListedANSI/CSA (UL61010+1604) Listed
Surrounding Air Temperature
0 to 55 °C [32 to 131 °F]
Ambient Humidity
10 to 95 % RH (Wet bulb temperature: 40 °C [104 °F] max. - no condensation)
Storage Humidity
10 to 95 % RH (Wet bulb temperature: 40 °C [104 °F] max. - no condensation)
Pollution Degree
For use in Pollution Degree 2 environment
Air pressure (altitude range)
2,000 m [6,561 ft.] max.
Vibration resistance
5 to 500 Hz: 2 Grms
Concussion resistance
IEC 60068-2-27 Ea test
Electromagnetic Compatibility (EMC)
Immunity to High Frequency Interference
Electromagnetic Emissions Class A
Interface specifications
USB Type A
Conforms to USB 2.0 (Type A) x 1
Structural specifications
Cooling method
Natural air circulation
Protective structure
IP66 / Nema 4x indoor
External dimensions
W319.10 x H245.10 x D28 mm [W12.56 x H9.65 x D1.10 in.]
Panel cut dimensions
W301.5 x H227.5 mm [W11.87 x H8.96 in.]
Weight
2.3 kg [5.08 lbs]
Dimensions

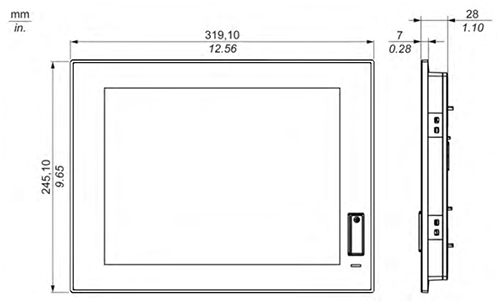

External installation diagram



Dimension



Panel cut dimensions



A B C R
301.5 ±0.5mm
[11.87 ±0.02 in.]		 227.5 ±0.4mm
[8.95 ±0.02 in.]		 2 to 4mm
[0.08 to 0.16 in.]		 5mm
[0.20 in.]

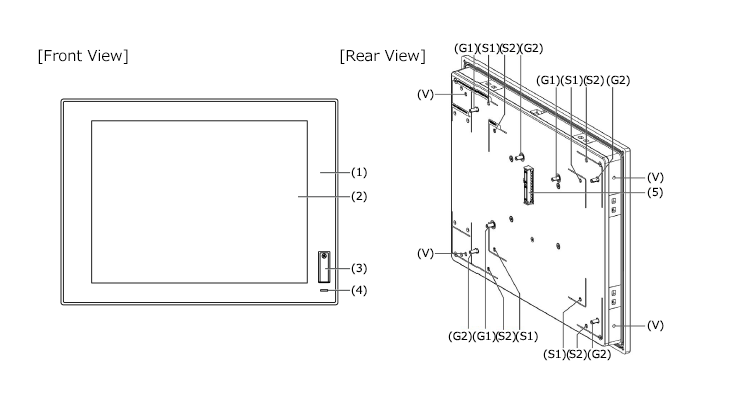

External dimensions with attached cable / Descriptions

(1) Panel (12" single-touch) (2) Single-touch panel (3) USB port (USB 2.0) and reset button (4) Status indicator (5) Panel connector for the Box or Display Adapter (G1) Removal panel guide for the Box Atom (S1) Mounting hole for the Box Atom (G2) Removal panel guide for the Box Celeron/Core i7 or Display Adapter (S2) Mounting hole for the Box Celeron/Core i7 or Display Adapter (V) Mounting hole for VESA (PFXZPP12ADVS2)
