About Function Expansion Memory

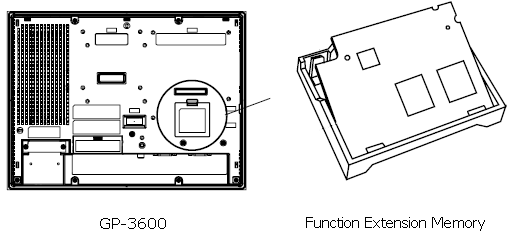

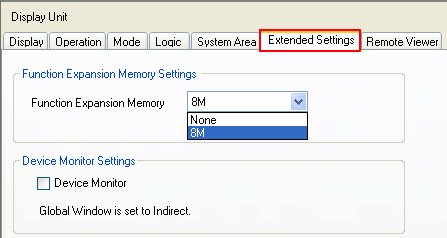

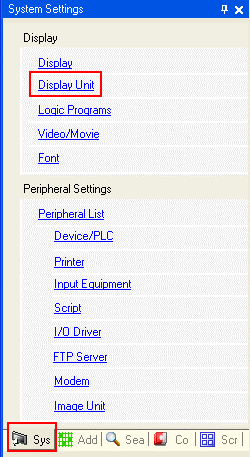

Model GP3000-EXDM01 The Function Expansion Memory is an optional memory board used to expand the number of alarm messages and the number of texts in the Text Table. Each number will be expanded as follows. without Memory with Memory Alarm 2048 32767 Text Table 10000 32767 Loading this memory enables you to manage large amounts of data with a small number of GP units even if there are multiple PLCs in a large-scaled production system. * Models that a Function Expansion Memory can be installed on are as follows. GP3000 Series GP-3400 Series All models GP-3500 Series All models GP-3600 Series All models GP-3700 Series All models NOTE * How to install the Function Expansion Memory and how to remove it depend on the which model is used. For the details, see Installation and Removal of Function Expansion Memory. * Setup Procedure This section explains how to set up GP-Pro EX to use the Function Expansion Memory. 1. In the [System Settings] window of the Work Space, select [Display Unit]. 2. Select the [Extended Settings] tab and set the [Function Expansion Memory] to "8M".
