| 1. | Click on the [Feature] icon on the status bar. | |
|  |
|
| 2. | Select [Action] from the tree display on the left of the screen, then click the [Add] button. | |
|  |
|

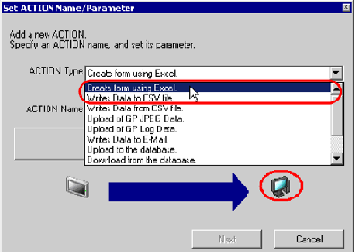

| 3. | Click the [ACTION Type] list button, and select "Create form using Excel". Then, enter the name of ACTION to set in the [ACTION Name] field. In this example, enter "GP Log data". | |
|  |
|

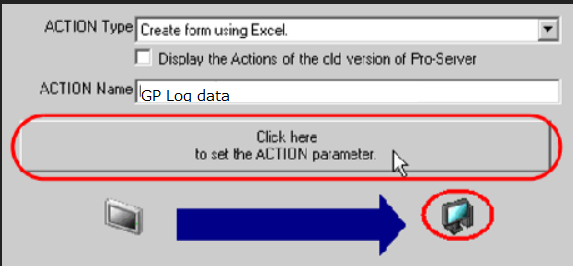

| 4. | Click the [Click here to set the ACTION parameter] button. | |
|  |
|

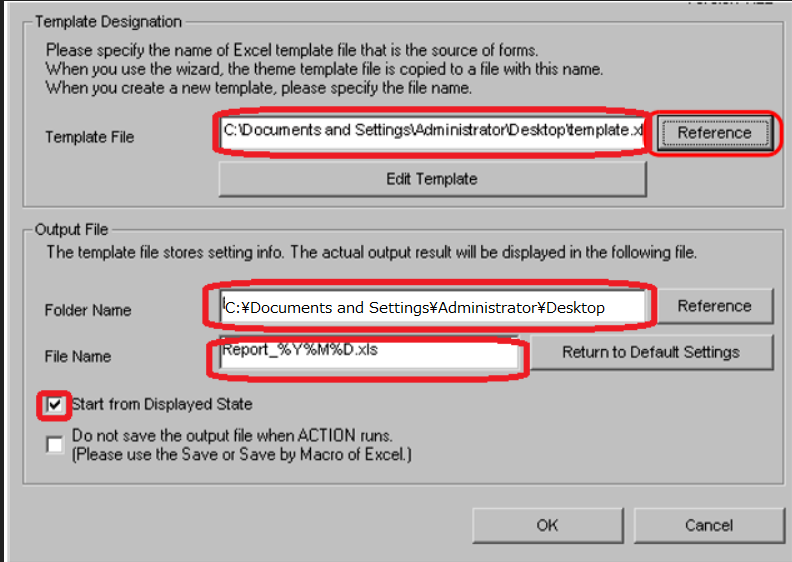

| 5. | Make settings regarding an Excel template and its output file. | |
|  |
| ・ Click the [Reference] button of [Template File] to set the template file "template.xlt" which you created. ・ Click the [Reference] button of [Folder Name] and specify "Desktop" as a folder to save the output file. ・ Set the file name "GP Log data.xls" in the [File Name] field for the output file to set. ・ Check the box of [Start from Displayed State]. |
| |
| MEMO | ・ | [Year/Month/Day] is set for the default, [%Y%M%D]. | ・ | [Start from Displayed State] can start reading or writing data with the output file displayed, so it's useful for confirming data quickly. | | |
