Affordable STM6000 Edge Box HMI realizes cloud service with your machine quickly without changing the current design by just adding a box.
Let's start Smart Manufacturing with the new Pro-face Edge Box right now.

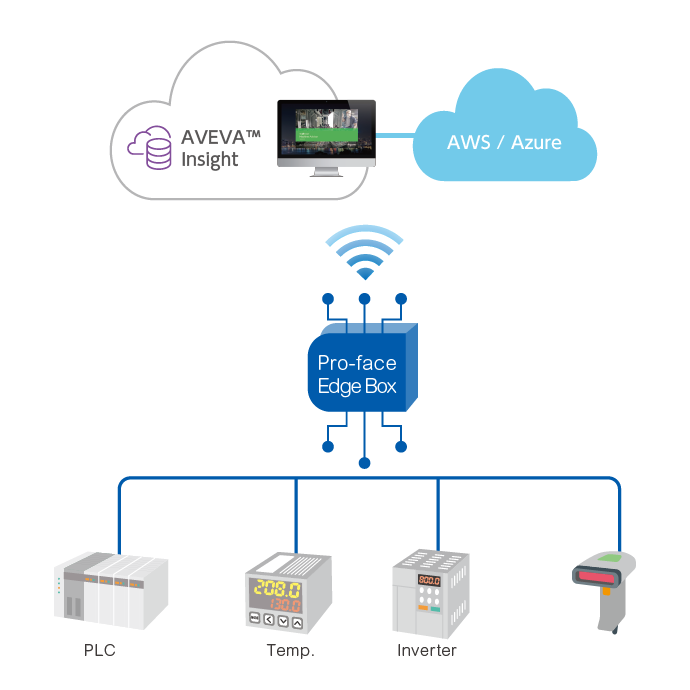

System Configuration
Use case: Get ready for Cloud service provided on Schneider Machine Advisor and AVEVA Insight.
Affordable STM6000 Edge Box HMI collecting data from connected devices and forward Data to Machine Advisor/ Advisor and AVEVA Insight with BLUE Open Studio Runtime.
Download the leaflet to learn more about the product list, directions for use, system configuration, and more.

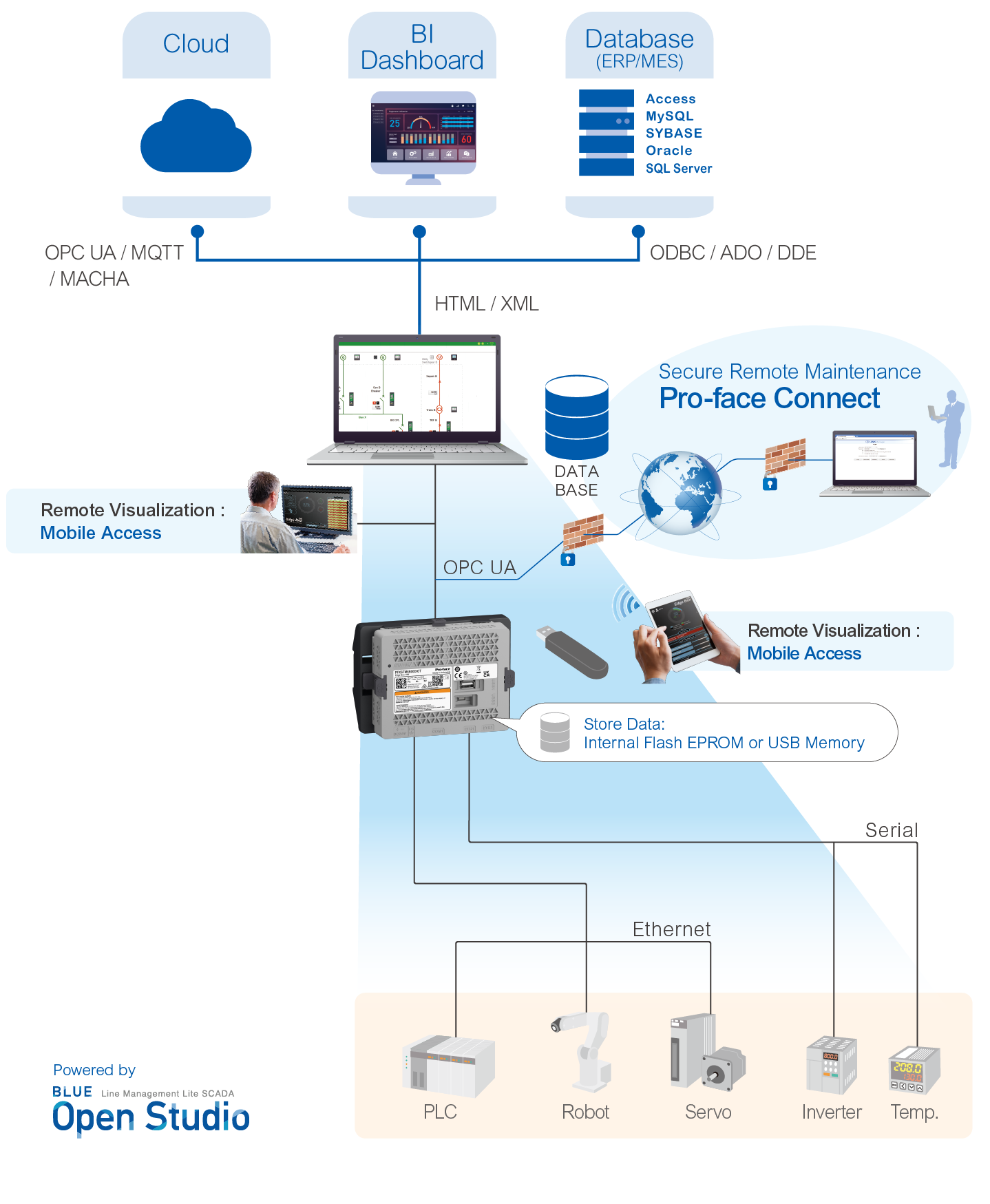

Migrate from Pro-face IoT Gateway and upgrade IoT function
ST6000 Edge Box HMI is a data enabler to collect data and allow Remote View.
Specification
| Model | PFXSTM6B00DIOT |
|---|---|
| Input Voltage | 19.2 to 28.8V DC |
| Application memory | FLASH EPROM 128MB |
| Storage memory | FLASH EPROM 467MB |
| Backup memory | NVRAM 500KB |
| No. of connected drivers | 4 |
| Resolutions | Up to 3840 x 2400 (QUXGA) |
| Interfaces | Serial x 1 Ethernet x 2 USB (Type A) x 1 USB (micro-B) x 1 |
| Mounting | Din Rail |
| Details | Specification |
Download
=Quick Start Guide=
=Sample Demo Apprication=
- Demo - STM6000 Edge Box HMI - EcoStruxure Machine Advisor
- Demo - STM6000 Edge Box HMI - Database
- Demo - STM6000 Edge Box HMI - AVEVA Insight
- Demo - STM6000 Edge Box HMI - All-in-one
=Leaflet (HMI Centric Architecture)=
- Enable new digital cloud-based services on your machine by STM6000 Edge Box HMI with EcoStruxure Machine Advisor.
- Simple and easy data management using STM6000 Edge Box HMI with SQL database
=Manual=
- STM6000 Series Hardware Manual (Web)
- STM6000 Series Hardware Manual (PDF)
- Edge Box HMI Reference Manual (PDF)
- [Installation Guide] STM6000 Edge Box HMI
- BLUE Open Studio Manual
- Device/PLC Connection Manual
=Software=
=Product Data=
