Eye-friendly and Usability, Superior FA Display
The Display Adapter allows you to add a display unit with PS5000 Series as a host.
* BTO orders only
Because the same high-quality glass face display module as PS5000 Series is used, a sub display with high visibility and excellent operability can be achieved.
Features

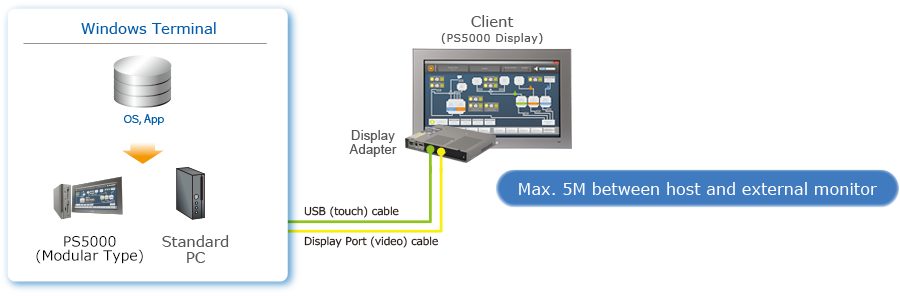

Add a display with Display Port (video) and USB (touch) connection at a distance of 5 meters max.
[Supported Screen Size] 22" Wide | 19" Wide | 15" Wide | 15" | 12" Wide | 12"
[Feature 1] Support Full HD TFT (1,920 x 1,080 pixels)
[Feature 2] Support gesture operation
[Feature 3] Able to have expansion desktop and clone display
[Cable Options]
- Display Port (video) cable <PFXZPBCBDP52> * 5m max.
- USB (touch) cable <FP-US00> * 5m max.
[Feature 1] Support Full HD TFT (1,920 x 1,080 pixels)
[Feature 2] Support gesture operation
[Feature 3] Able to have expansion desktop and clone display
[Cable Options]
- Display Port (video) cable <PFXZPBCBDP52> * 5m max.
- USB (touch) cable <FP-US00> * 5m max.

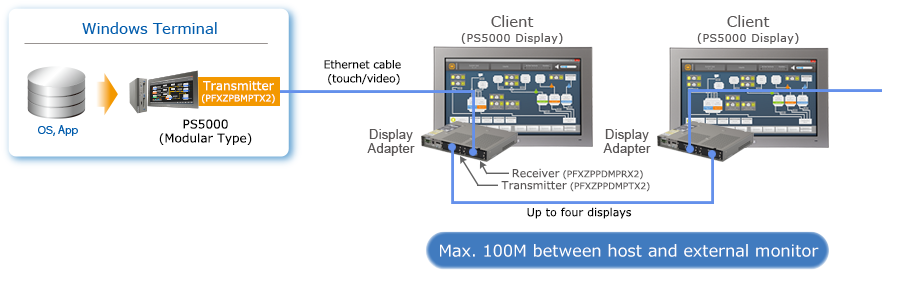

Add displays with Ethernet (video and touch) connection at a distance of 100 meters max.
[Supported Screen Size] 19" Wide | 15" Wide | 15" | 12" Wide | 12"
[Feature 1] Extendable up to 100 meters between displays with Ethernet (video and touch)
[Feature 2] Able to have expansion displays up to four units
[Feature 3] Support gesture operation
[Cable]
- Ethernet cable <commercial item, CAT6 or higher recommended> * 100m max.
[Options]
- Transmitter <PFXZPBMPTX2> - Attach to Host (PS5000 Series)
- Receiver <PFXZPPDMPRX2> - Attach to Display Adapter
- Transmitter <PFXZPPDMPTX2> - Attach to Display Adapter
[Feature 1] Extendable up to 100 meters between displays with Ethernet (video and touch)
[Feature 2] Able to have expansion displays up to four units
[Feature 3] Support gesture operation
[Cable]
- Ethernet cable <commercial item, CAT6 or higher recommended> * 100m max.
[Options]
- Transmitter <PFXZPBMPTX2> - Attach to Host (PS5000 Series)
- Receiver <PFXZPPDMPRX2> - Attach to Display Adapter
- Transmitter <PFXZPPDMPTX2> - Attach to Display Adapter
Specifications
Electrical Specifications
| Product Name | PS5000 Series Display Adapter | |
|---|---|---|
| Power supply | Rated input voltage | 24Vdc |
| Power consumption | 2W | |
| In-rush current | 5.3A | |
Environmental Specifications
| Product Name | PS5000 Series Display Adapter |
|---|---|
| Surrounding air temperature | 0 to 55 °C (32 to 131 °F) |
| Storage temperature | -30 to +70 °C |
| Ambient humidity | 10 to 90 % RH (Wet bulb temperature: 40 °C [140 °F] max.) |
| Storage humidity | 10 to 95 % RH (Wet bulb temperature: 40 °C [140 °F] max.) |
| Pollution degree | For use in Pollution Degree 2 environment |
| Air pressure (altitude range) | 800 to 1,114 hPa (2,000 m [6,561 ft.] above sea level or less) |
| Vibration resistance | 5 to 500Hz, 2Grms |
| Concussion resistance | IEC 60068-2-27 Ea test |
| Electromagnetic compatibility (EMC) | Immunity to High Frequency Interference / Electromagnetic Emissions (EMI) ClassA |
Structural specifications
| Product Name | PS5000 Series Display Adapter | |
|---|---|---|
| Cooling method | Natural air circulation | |
| External dimensions | W254 x H207 x D37 mm (W10.00 x H8.15 x D1.46 in.) | |
| Weight | 1.8 kg (3.96 lb) | |
PS5000 Series Display Monitor Specifications
| Product Name | Model No. | Display Size | Touch Panel Type | Details |
|---|---|---|---|---|
| PS-D5900WP | PFXPPD5900WP | 22" Wide (Full HD) | Projected Capacitive (5 simultaneous touch) |  |
| PS-D5800WP | PFXPPD5800WP | 19" Wide (FWXGA) | | |
| PS-D5700WP | PFXPPD5700WP | 15" Wide (FWXGA) | | |
| PS-D5600WP | PFXPPD5600WP | 12" Wide (WXGA) | | |
| PS-D5700TA | PFXPPD5700TA | 15" (XGA) | Resistive Film (single touch) | |
| PS-D5600TA | PFXPPD5600TA | 12" (XGA) | |
