PFXGE4408WAD

Standard product information
Family
HMI
Series
GC4000 Series
Size
7" Wide
Model
PFXGE4408WAD
Global Code
PFXGE4408WAD
End of sales
09/29/2017
End of repair
12/28/2019
Repair Service Remark
-
Replacement option 1
Replacement code 1
PFXET6400WAD
Replacement code 1 comment
ET6000 Series
DC power supply
TFT color LCD
Display specifications
Display type
TFT Color LCD
Display size
7" Wide
Resolution
800 x 480 pixels (WVGA)
Effective display area
W154.08 x H85.92 mm [W6.066 x H3.382 in.]
Display colors
65,536 colors
Backlight
LED
Backlight service life
20,000 hrs. or more (each in continuous operation at 25 °C [77 °F] before backlight brightness decreases to 50%)
Brightness control
8 Levels (Adjusted with touch panel)
Touch panel type
Resistive Film (analog)
Touch panel lifetime
1,000,000 times or more, Sweeping 100,000 times or more
Language fonts
Chinese (Simplified)
Character sizes
Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts
Font sizes
Width can be expanded 1 to 8 times. Height can be expanded 1/2 and 1 to 8 times.
8 x 8 dots
40 char. x 30 rows
8 x 16 dots
40 char. x 15 rows
16 x 16 dots
20 char. x 15 rows
32 x 32 dots
10 char. x 7 rows
Electrical specifications
Rated input voltage
24 Vdc
Allowable voltage drop
1 ms or less with lowest input voltage, 10 ms or less with rated input voltage
Power consumption
5W
In-rush current
50 A or less
Voltage endurance
600 Vac, 20 mA for 1 minute
Insulation resistance
500 Vdc, 10 MΩ or more (between power terminal and FG terminals)
Environmental specifications
International safety standards
CE
Surrounding air temperature
0 to 50 °C [32 to 122 °F]
Storage temperature
-20 to +60 °C [-4 to 140 °F]
Ambient humidity
85 % RH (Wet bulb temperature: 39 °C [102.2 °F] max. - no condensation)
Storage humidity
10% to 90% RH (Non condensing, wet bulb temperature 39 °C [102.2 °F] or less)
Dust
0.1 mg/m3 (10-7 oz/ft3) or less (non-conductive levels)
Pollution degree
For use in Pollution Degree 2 environment
Corrosive gases
Free of corrosive gases
Air pressure (altitude range)
2,000 m [6,561 ft.] max.
Vibration resistance
IEC/EN60068-2-6, 5 to 150 Hz, 3.5 mm (0.38 in) max., 1gn pm 3 axes
Concussion resistance
IEC 60068-2-27, 1/2 sinusoidal pulse for 11 ms, 15g on 3 axes
Electrostatic discharge immunity
EN/IEC 61131-2, 4 kV direct contact, 8 kV air contact
Electromagnetic compatibility (EMC)
IEC 61000 - 4 - 5, 0.5 kV (Differential Mode on power supply), 1 kV (Common Mode on power supply)
Memory
Application memory
FLASH EPROM 8 MB
Backup memory
FLASH EPROM 128 KB
Clock accuracy
Variations in operating conditions and battery life can cause a clock inaccuracy from -380 to +90 seconds per month.
Interface specifications
Serial (COM1)
Asynchronous Transmission: RS-232C, Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits, Parity: None, Even or Odd, Data Transmission Speed: 2,400 to 115,200 bps, Connector: D-Sub 9 (plug)
Serial (COM2)
Asynchronous Transmission: RS-422 / 485, Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits, Parity: None, Even or Odd, Data Transmission Speed: 2,400 to 187,500 bps, Connector: D-Sub 9 pin (plug)
USB (Type A)
Conforms to USB 2.0 (Type A) x 1
Communication distance: 5 m [16.4 ft.] or less
USB (mini-B)
Conforms to USB (mini-B) x 1, Used in Project file upload/download
Structural specifications
Grounding
Functional grounding: Grounding resistance of 0.1 Ω, 2mm2 (AWG 14).
Cooling method
Natural air circulation
Structure
Front Panel: IP65 (IEC60529), Enclosure type 4 indoor use only (UL 50) with screw installation fasteners, Rear Panel: IP20 (IEC 60529)
External dimensions
W207.8 x H153.2 x D59.8 mm [W8.18 x H6.03 x D2.35 in.]
Dimensions

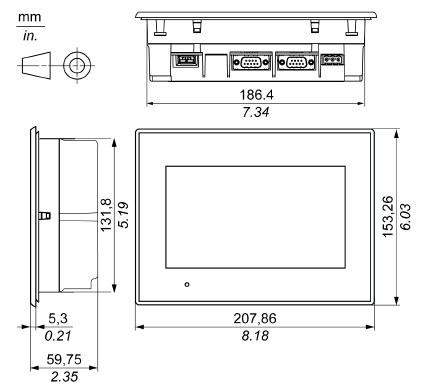

External dimensions

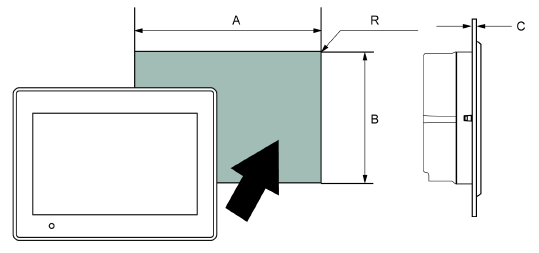

Panel cut-out dimensions


A B C (Panel Thickness) R
190±1 mm (7.48±0.04 in.) 135±0.7 mm (5.31±0.03 in.) 1.5 to 10 mm
(0.06 to 0.39 in.)		 3 mm
(0.12 in.) max.

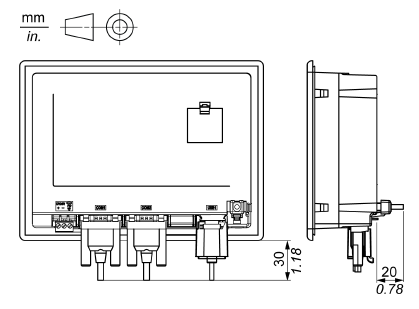

External dimensions with cable
