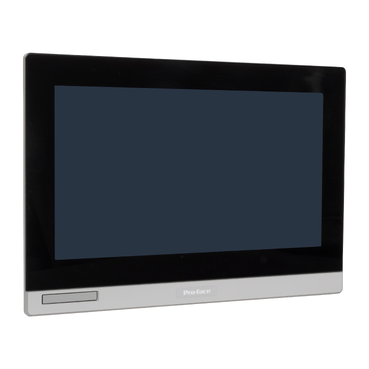

PFXSP5700WCD

Standard product information
Family
HMI
Series
SP5000 Series
Size
15" Wide
Model
PFXSP5700WCD
Global Code
PFXSP5700WCD
Product Features
15" Wide DC Auto Scaling Brightness Sensor (Premium Display)
Display specifications
Display type
TFT Color LCD
Display size
15" Wide
Resolution
1,366 x 768 pixels (FWXGA)
Auto scaling
Equipped
Effective display area
W344.2 x H193.5 mm [W13.55 x H7.62 in.]
Display colors
16 million colors
Backlight
White LED (Not user replaceable. When replacement is required, contact your local distributor.)
Backlight service life
50,000 hrs. or more (each in continuous operation at 25 °C [77 °F] before backlight brightness decreases to 50%)
Brightness control
0 to 100 (Adjusted with touch panel or software)
Brightness sensor
Equipped
Touch panel type
Projected Capacitive (5 simultaneous touch)
Touch panel resolution
2,048 x 2,048
Touch panel lifetime
50,000,000 times or more
Electrical specifications
Rated input voltage
12 to 24 Vdc
Input voltage limits
10.8 to 28.8 Vdc
Allowable voltage drop
12 Vdc: 1.25 ms or less
24 Vdc: 5 ms or less
Power consumption
Max. 17 W
When power is not supplied to external devices: 14 W or less
Backlight adjusted (20%): 8 W or less
Backlight OFF (Stand-by mode): 6 W or less*1
In-rush current
30 A or less
Noise immunity
Noise Voltage : 1,000 Vp-p
Pulse Duration : 1 µs
Rise Time : 1 ns
(via noise simulator)
Voltage endurance
1,000 Vac, 20 mA for 1 minute (between power terminal and FG terminals)
Insulation resistance
500 Vdc, 10 MΩ or more (between power terminal and FG terminals)

1Power consumption for Display Module only

Environmental specifications
International safety standards
CEUKCAUL,cUL (61010) ListedANSI/CSA (UL61010+1604) ListedATEXIECExMarine DNV-GLEACKCC-Tick
Surrounding air temperature
0 to 55 °C [32 to 131 °F]
Storage temperature
-20 to +60 °C [-4 to 140 °F]
Ambient humidity
10 to 90 % RH (Wet bulb temperature: 39 °C [102.2 °F] max. - no condensation)
Storage humidity
10 to 90 % RH (Wet bulb temperature: 39 °C [102.2 °F] max. - no condensation)
Dust
0.1 mg/m3 (10-7 oz/ft3) or less (non-conductive levels)
Pollution degree
For use in Pollution Degree 2 environment
Corrosive gases
Free of corrosive gases
Air pressure (altitude range)
800 to 1,114 hPa (2,000 m [6,561 ft.] above sea level or less)
Vibration resistance
IEC/EN 61131-2 compliant
5 to 9 Hz single amplitude 3.5 mm [0.14 in.]
9 to 150 Hz fixed acceleration: 9.8 m/s2
X, Y, Z directions for 10 cycles (approx. 100 min.)
Concussion resistance
IEC/EN 61131-2 compliant 147 m/s2, X, Y, Z directions for 3 times
Electrostatic discharge immunity
Contact Discharge Method: 6 kV
Air Discharge Method: 8 kV
(IEC/EN61000-4-2 Level 3)
Interface specifications
USB (Type A)
Conforms to USB 2.0 (Type A) x 1
Power supply voltage: 5 Vdc ±5 %
Output Current: 500 mA
Communication distance: 5 m [16.4 ft.]*1
USB (mini-B)
Conforms to USB 2.0 (mini-B) x 1, Communication Distance: 5 m [16.4 ft]

1When using the Display Module with the Power Box, you can connect only one of each type of USB device, such as one USB flash drive, one transfer cable, or one barcode reader. If you connect multiple devices that are the same type, only the first device will work.

Structural specifications
Grounding
Functional grounding: Grounding resistance of 100 Ω, 2 mm2 (AWG 14) or thicker wire, or your country’s applicable standard (same for FG and SG terminals).
Cooling method
Natural air circulation
Structure
When using a factory-installed front USB cover: IP65F, IP67F, Type 1
When using a front USB cover as an option: IP66F, IP67F, Type 1, Type 4X (indoor use only)/13
NOTE: The option is a front USB cover with screw manufactured by Pro-face (Model Number PFXZCDCVUS1).*1
External dimensions
W414 x H295 x D69 mm [W16.29 x H11.61 x D2.71 in.]
Panel cut-out dimensions
W396 x H277 mm [W15.59 x H10.90 in.]*2
Weight
5 kg [11.03 lb] or less*3

1The front face of the unit, installed in a solid panel, has been tested using conditions equivalent to the standards shown in the specification. Even though the unit's level of resistance is equivalent to these standards, oils that should have no effect on the unit can possibly harm the unit. This can occur in areas where either vaporized oils are present, or where low viscosity cutting oils are allowed to adhere to the unit for long periods of time. If the unit's front face protection sheet becomes peeled off, these conditions can lead to the ingress of oil into the unit and separate protection measures are suggested. Also, if non-approved oils are present, it may cause deformation or corrosion of the front panel's plastic cover. Therefore, prior to installing the unit, be sure to confirm the type of conditions that will be present in the unit's operating environment. If the installation gasket is used for a long period of time, or if the unit and its gasket are removed from the panel, the original level of the protection cannot be guaranteed. To maintain the original protection level, be sure to replace the installation gasket regularly.

2For dimensional tolerance, everything +1/-0 mm [+0.04/-0 in.] and R in angle are below R3 [R0.12 in.]. Even if the installation wall thickness is within the recommended range for the "Panel Cut Dimensions", depending on wall's material, size, and installation location of GP unit and other devices, the installation wall could warp. To prevent warping, the installation surface may need to be strengthened.

3Display module only.

Dimensions
External dimensions

Display module and box module combination

Panel cut-out dimensions


A B C
396 mm (+1/-0 mm)
15.59 in. [+0.04/-0 in.]		 277 mm (+1/-0 mm)
10.91 in. [+0.04/-0 in.]		 1.6 to 5 mm
[0.06 to 0.2] in.
External dimensions with cable

(Image of Open Box)

*1 Rotation area of the fastener

*2 Pitch of center of installation fastener screws
