PFXST6500TADE

Standard product information
Family
HMI
Series
ST6000 Series
Size
10”
Model
PFXST6500TADE
Global Code
PFXST6500TADE
Product Features
10" DC Analog
Display specifications
Display type
TFT Color LCD
Display size
10.4"
Resolution
800 x 600 pixels (SVGA)
Effective display area
W211.2 x H158.4 mm [W8.31 x H6.24 in.]
Display colors
16 million colors*1
Backlight
White LED (Not user replaceable. When replacement is required, contact customer support.)
Backlight service life
50,000 hrs. or more (each in continuous operation at 25 °C [77 °F] before backlight brightness decreases to 25%)
Brightness control
16 Levels (Adjusted with touch panel or software)
Touch panel type
Resistive Film (analog, single-touch)
Touch panel resolution
1,024 x 1,024
Touch panel lifetime
1,000,000 times or more

1For details about Display colors, refer to the manual for your screen editing software.

Electrical specifications
Rated input voltage
24 Vdc
Input voltage limits
19.2 to 28.8 Vdc
Allowable voltage drop
10 ms or less
Power consumption
Max. 10.56 W
When power is not supplied to external devices: 7.51 W or less
When screen turns off the backlight (standby mode): 4.56 W or less
In-Rush Current: 30A or less
In-rush current
30 A or less
Noise immunity
Noise Voltage : 1,000 Vp-p
Pulse Duration : 1 µs
Rise Time : 1 ns
(via noise simulator)
Voltage endurance
1,000 Vac, 20 mA for 1 minute (between charging and FG terminals)
Insulation resistance
500 Vdc, 10 MΩ or more
Environmental specifications
International safety standards
CEcULuscULus Class 1 Division 2ATEXIECExEACKCC-TickEU RO MR
Surrounding air temperature
0 to 50 °C [32 to 122 °F]
Storage temperature
-20 to +60 °C [-4 to 140 °F]
Ambient humidity
10% to 90% RH (Non condensing, wet bulb temperature 39 °C [102.2 °F] or less)
Storage humidity
10% to 90% RH (Non condensing, wet bulb temperature 39 °C [102.2 °F] or less)
Dust
0.1 mg/m3 (10-7 oz/ft3) or less (non-conductive levels)
Pollution degree
For use in Pollution Degree 2 environment
Corrosive gases
Free of corrosive gases
Air pressure (altitude range)
800 to 1,114 hPa (2,000 m [6,561 ft.] above sea level or less)
Vibration resistance
IEC/EN 61131-2 compliant
5 to 9 Hz single amplitude 3.5 mm [0.14 in.]
9 to 150 Hz fixed acceleration: 9.8 m/s2
X, Y, Z directions for 10 cycles (approx. 100 min.)
Concussion resistance
IEC/EN 61131-2 compliant 147 m/s2, X, Y, Z directions for 3 times
Electrical fast transient/burst
IEC 61000-4-4
2 kV: Power port (display unit)
1 kV: Signal ports
Electrostatic discharge immunity
Contact Discharge Method: 6 kV
Air Discharge Method: 8 kV
(IEC/EN61000-4-2 Level 3)
Memory
Application memory
When using GP-Pro EX:
- Media: FLASH EPROM
- Screen Area: 64MB *Use the screen area when the user font area's capacity is exceeded - for example, when an image font or a picture font is used.
- User Font Area: 8MB
- Logic Program Area: 132KB (Equivalent to 15,000 steps)
- Free Space: None

Removable System: No
Backup memory
When using GP-Pro EX:
- Screen Area: SRAM 320KB
- Variable Area: SRAM 64KB

Battery: Replaceable battery / Primary battery for clock data backup
Interface specifications
Serial (COM1)
Asynchronous Transmission: RS-232C, Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits, Parity: None, Even or Odd, Data Transmission Speed: 2,400 to 115,200 bps, Connector: D-Sub 9 (plug)
Serial (COM2)
Asynchronous Transmission: RS-422 / 485, Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits, Parity: None, Even or Odd, Data Transmission Speed: 2,400 to 115,200 bps, Connector: D-Sub 9 pin (plug)
USB (Type A)
Conforms to USB 2.0 (Type A) x 1
Power supply voltage: 5 Vdc ±5 %
Output Current: 500 mA/port
Maximum transmission distance : 5 m [16.4 ft.]
USB (micro-B)
Conforms to USB 2.0 (micro-B) x 1, Maximum transmission distance : 5 m [16.4 ft]
Ethernet
IEEE802.3i / IEEE802.3u, 10BASE-T / 100BASE-TX, Connector: Modular jack (RJ-45) x 1
SD card
up to 32 GB
Structural specifications
Grounding
Functional grounding: Grounding resistance of 100 Ω, 2 mm2 (AWG 14) or thicker wire, or your country’s applicable standard.
Cooling method
Natural air circulation
Structure
IP65F, UL 50/50E, Type 1, Type 4X (indoor use only),
Type 13 (on the front panel when properly installed in an enclosure)
External dimensions
W315 x H241 x D55.3 mm [W12.4 x H9.49 x D2.18 in.]
Panel cut-out dimensions
W301.5 x H227.5 mm [W11.87 x H8.96 in.]
Panel thickness area: 1.6 to 5 mm [0.06 to 0.2 in.]*1
Weight
1.8 kg [3.97 lb] or less

1Even if the installation wall thickness is within the recommended range for the Panel Cut Dimensions, depending on the wall's material, size, and installation location of this product and other devices, the installation wall could warp. To prevent warping, the installation surface may need to be strengthened.

Dimensions

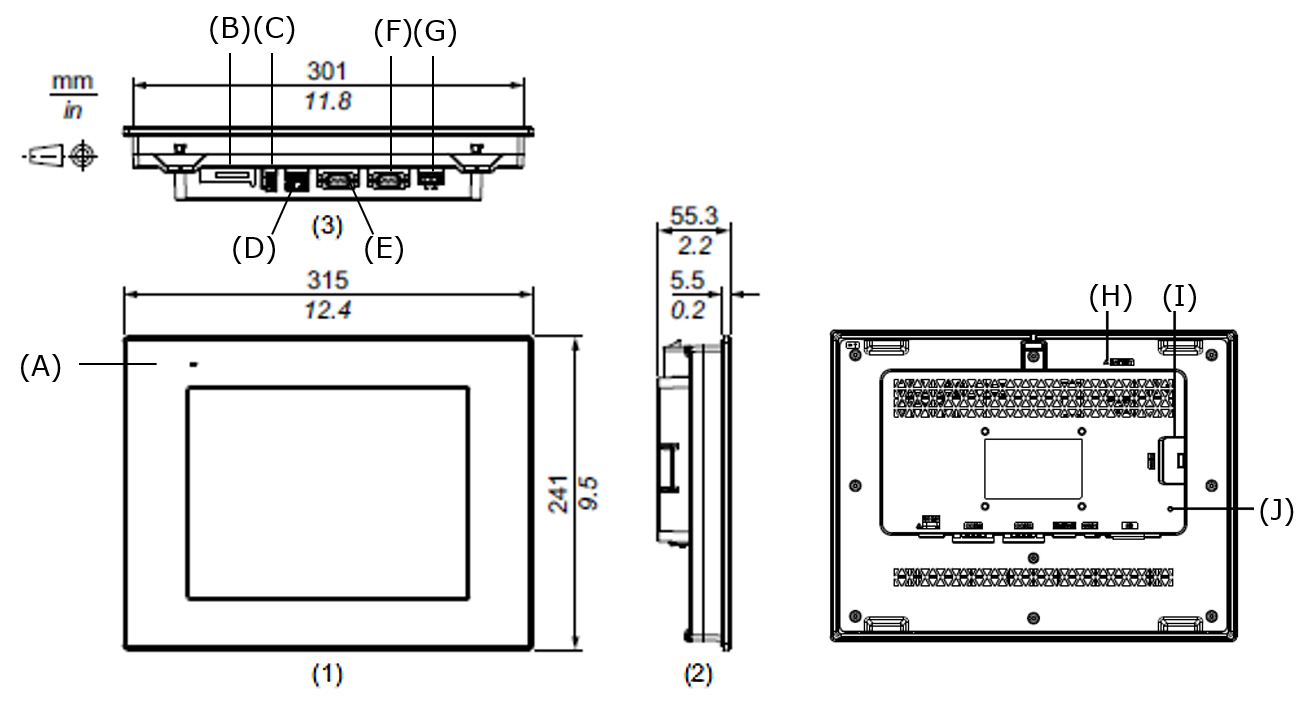

External dimensions
(1) Front
(2) Left
(3) Bottom

A Status LED
B SD card slot
C USB (Type A) interface
D Ethernet interface
E Serial interface (RS-422/485)(COM2)
F Serial interface (RS-232C)(COM1)
G Power plug connector
H Safety alert symbol
I USB (micro-B) interface
J SD card status LED



Panel cut-out dimensions
A B C
301.5 mm (+1/0 mm)
(11.87 in. [+0.04/0 in.])		 227.5 mm (+1/0 mm)
(8.96 in. [+0.04/0 in.])		 1.6 to 5 mm
(0.06 to 0.2 in.)

When installing ST-6200WA with spring clips:
Position 1:1.5…4 mm
(0.06..0.16 in)
Position 2:4…6 mm
(0.06..0.24 in)
