Basic HMI ST-6500T/6300T can easily migrate from the existing HMIs with 4:3 size displays.
Utilize the current project data because of the same software(GP-Pro EX) and screen size.
Plus, the aluminum front bezel raises the level of simple machines.
High-resolution on wide displays with GP-Pro EX is also available to modernize your machine.
Feature

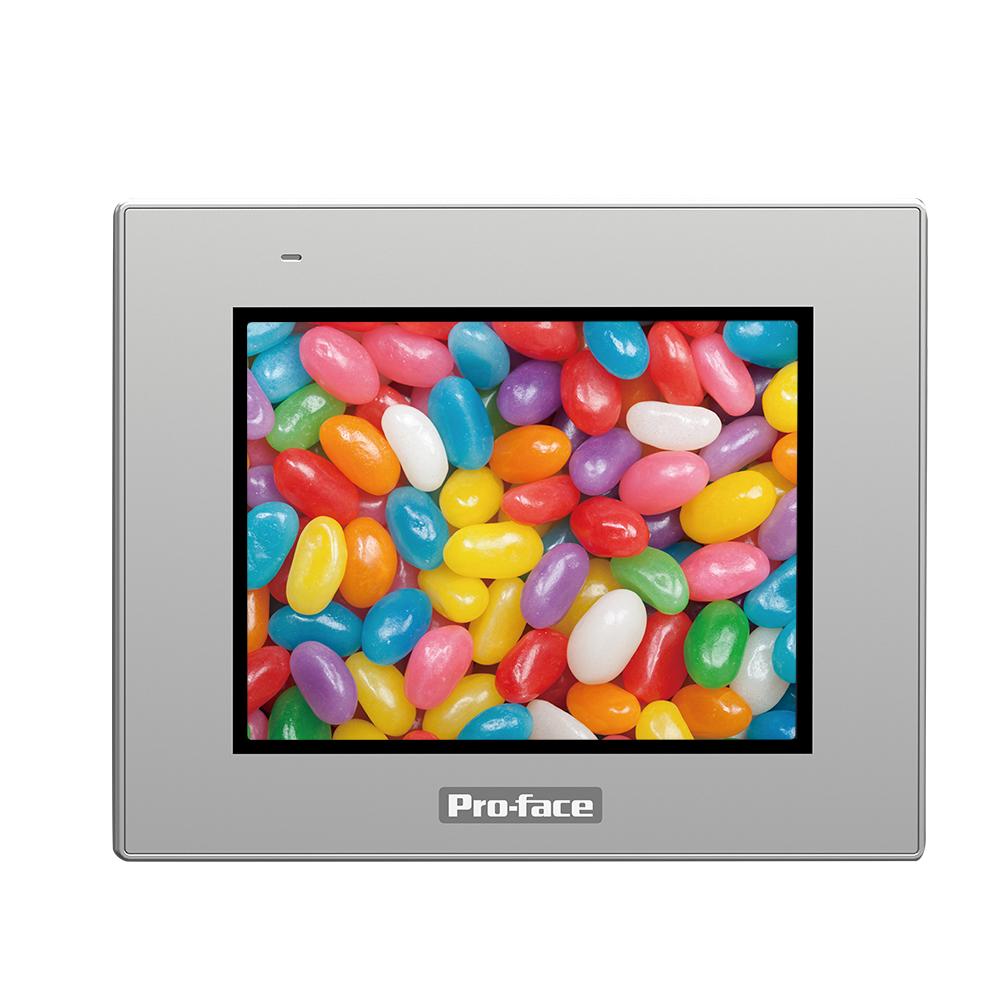

Refined
We have designed a superior quality display that improves operability and optimizes operations and machine information—an innovative HMI with a sophisticated design that transforms simple machines.
Simple & Easy

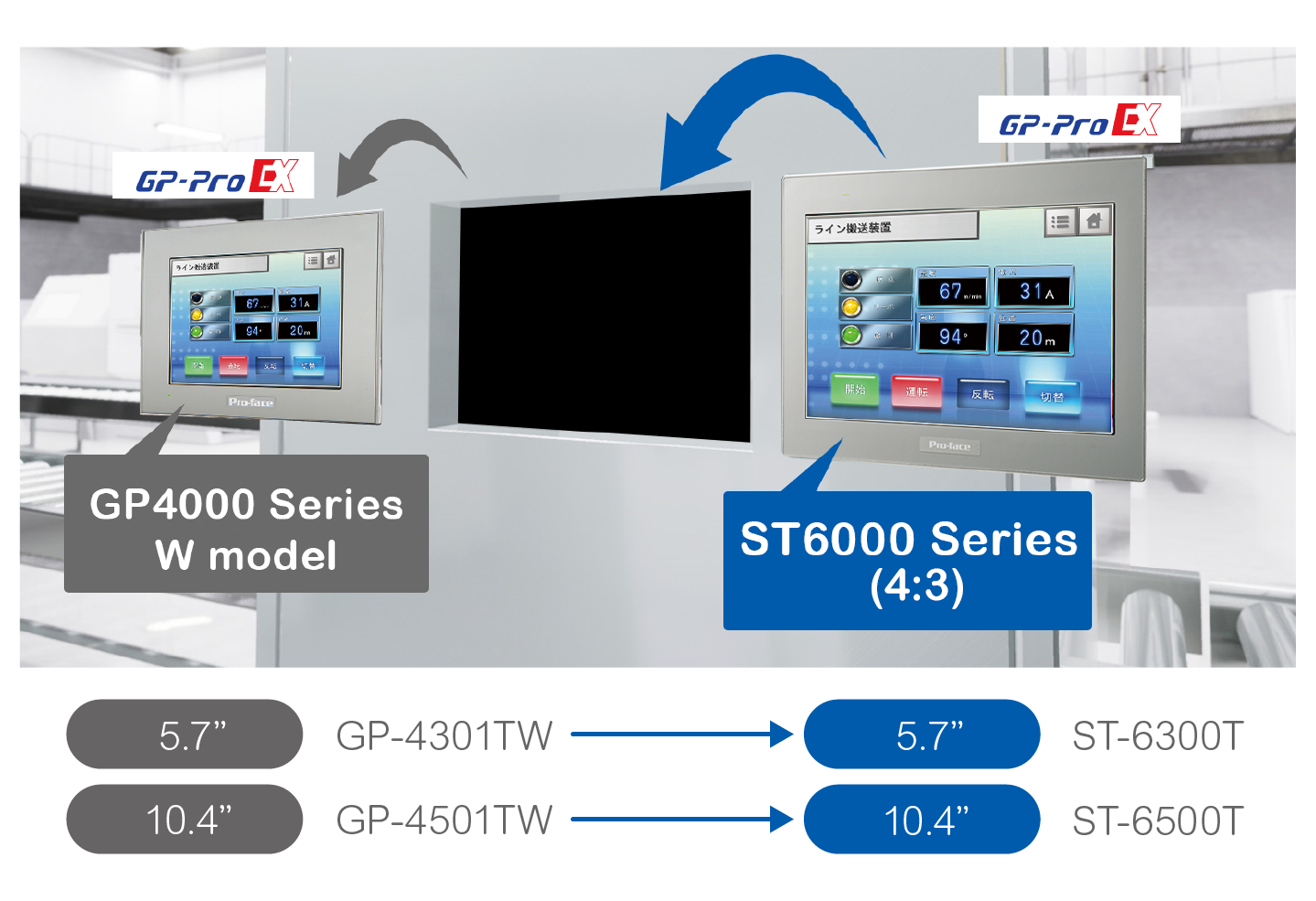

Easy Migration with GP-ProEX. Use the same application(GP-ProEX) and leverage existing assets. (Download Replacement book.)

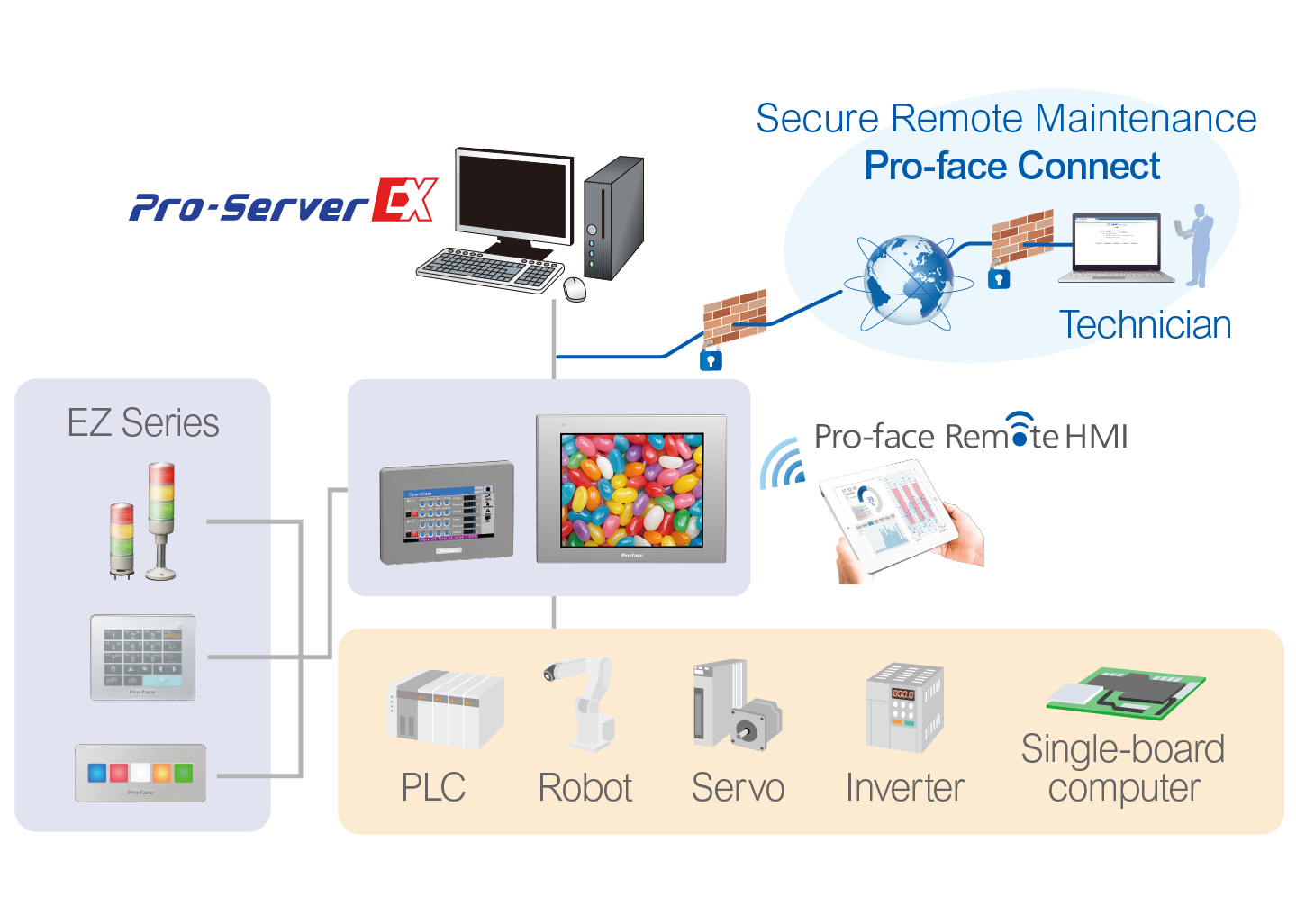

Connected & Secured
User-friendly protocols allow you to easily connect your devices via multiple interfaces and OT to IT.
Lineup/Specifications
| ST-6300T | ST-6500T | ||
|---|---|---|---|
| Model No | PFXST6300TADE | PFXST6500TADE | |
| Display | 5.7" (640 x 480) | 10.4” (800 x 600) | |
| 262,144 colors | 16M colors | ||
| Touch Panel | Type : resistive film (analog). Service life : 1,000,000 times or more | ||
| Interface | COM | RS-232 x 1, RS-422/485 x 1 | |
| Ethernet | 10BASE-T / 100BASE-TX x 1 | ||
| USB | Type A x 1, micro-B x 1 | ||
| SD | - | up to 32 GB | |
| Input Voltage | 19.2 to 28.8 Vdc | ||
| Memory | Application memory : Media : FLASH EPROM / Screen area: 64MB / User font area 8 MB / Logic program area: 132KB Backup memory : Screen Area: SRAM 320KB, Variable Area: SRAM 64KB Battery: Unreplaceable battery by the customer/ Primary battery for clock data backup | ||
|
Panel Cut Dimensions |
156 x 123.5 mm (6.14 x 4.86 in) |
301.5 x 227.5 mm (11.87 x 8.96 in) | |
| Structure | IP65F , UL 50/50E , Type 1, Type 4X (indoor use only), Type 12, Type 13 | ||
| Certification* | CE, UL, cULus, cULus Class 1 Division 2, RMC, KC, EAC, EU RO MR, ClassNK, ATEX/IECEx, RoHS, WEEE | ||
| Details | Specifications | Specifications | |
* Please refer to the specification page for the latest available certifications.
Support/Download
=Manual=
- ST6000 Series Hardware Manual (Web)
- ST6000 Series Hardware Manual (PDF)
- ST6000 Series Installation Guide
- GP-Pro EX Reference Manual
- Device/PLC Connection Manual
=Software=
=Leaflet / Datasheet=
=Product Data=
- ST6000 Series Datasheet
- ST6000 Series CAD data
- Safety standards/Guarantee of the compatibility for RoHS directives
- Export Document PDF
=Replacement Book=
