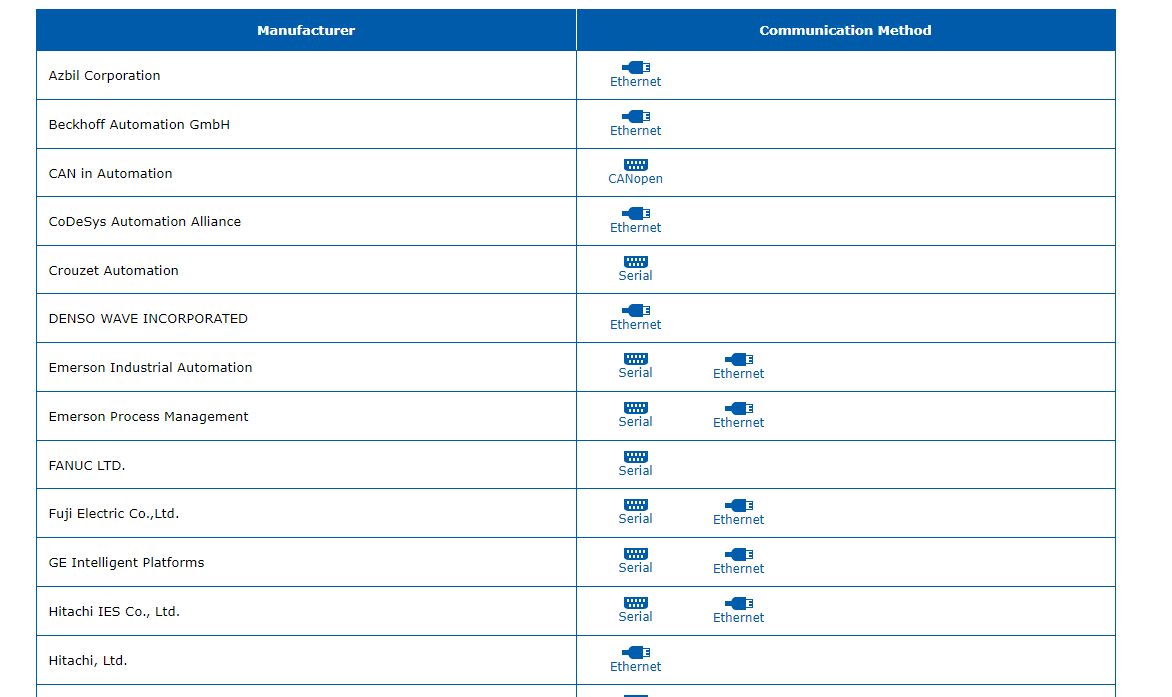

To see the available documentation for the communication drivers, choose the objective manufacture and communication method on the Device/PLC Connection Manual.
The following devices are not listed in the GP-Pro EX Connection Device Manual but have been tested for operation. Please contact your local support office if you have any questions about the detailed connection method or other issues.
| Manufacturer | Device type | Series | CPU | Link I/F | Connection method | HMI | Communication Driver | Result Date |
|---|---|---|---|---|---|---|---|---|
| Mitsubishi Electric Corporation | CNC | M80V | FCA80H－4AV | LAN1 connector | Ethernet (TCP) | SP-5500WA+SP-5B10 | Q/QnA Series Ethernet | Jul 09, 2024 |
| PLC | FX5S | FX5S-60MR/ES | Ethernet Port on CPU | Ethernet (TCP) | SP-5500WA+SP-5B10 SP-5500WA+SP-5B41 ST-6400WA GP-4114T | General MODBUS TCP Master | Oct 24, 2024 | |
| FX5-232-BD | RS232C | SP-5500WA+SP-5B10 SP-5500WA+SP-5B41 ST-6400WA GP-4115T | General MODBUS SIO Master | Oct 24, 2024 | ||||
| FX5-232ADP | RS232C | SP-5500WA+SP-5B10 SP-5500WA+SP-5B41 ST-6400WA GP-4115T | General MODBUS SIO Master | Oct 24, 2024 | ||||
| FX5-485-BD | RS422/485(2wire) RS422/485(4wire) | SP-5500WA+SP-5B10 SP-5500WA+SP-5B41 ST-6400WA GP-4116T | General MODBUS SIO Master | Oct 24, 2024 | ||||
| FX5-485ADP | RS422/485(2wire) RS422/485(4wire) | SP-5500WA+SP-5B10 SP-5500WA+SP-5B41 ST-6400WA GP-4116T | General MODBUS SIO Master | Oct 24, 2024 | ||||
| OMRON Corporation | PLC | CJ2 | CJ2H CPU-64EIP | CJ1W-SCU22 | RS232C | GP-4501T | CS/CJ Series HOST Link | Jul. 04, 2023 |
| CJ1W-SCU32 | RS422/485(4 wire) | |||||||
| CJ1W-SCU42 | RS232C RS422/485(4 wire) | |||||||
| CP1 | CP1H-X40DR-A | CJ1W-SCU22 | RS232C | GP-4501T | CS/CJ Series HOST Link | Jul. 04, 2023 | ||
| CJ1W-SCU32 | RS422/485(4 wire) | |||||||
| CJ1W-SCU42 | RS232C RS422/485(4 wire) | |||||||
| NJ | NJ101-1000 NJ101-1020 | Built-in EtherNet/IP | Ethernet (TCP) | SP5500WAD+SP5B10 SP5500WAD+SP5B412 ST6400WAD GP4114 | CS/CJ/NJ/NX Series Ethernet/IP | Oct. 11, 2023 | ||
| NX | NX502-1500 NX502-1400 NX502-1300 | Built-in EtherNet/IP (port2) | Ethernet (TCP) Ethernet (UDP) | SP5500WAD+SP5B10 SP5500WAD+SP5B412 ST6400WAD GP4114 | CS/CJ Series Ethernet | |||
| Built-in EtherNet/IP (port1) Built-in EtherNet/IP (port2) | Ethernet (TCP) | CS/CJ/NJ/NX Series Ethernet/IP |
