PFXGE4501WAD

Standard product information
Family
HMI
Series
GC4000 Series
Size
10" Wide
Model
PFXGE4501WAD
Global Code
PFXGE4501WAD
End of sales
29/09/2017
End of repair
28/12/2019
Repair Service Remark
-
Replacement option 1
Replacement code 1
PFXET6500WAD
Replacement code 1 comment
ET6000 Série
Alimentation CC
TFT couleur LCD
Display specifications
Display type
TFT Color LCD
Display size
10.1" Wide
Resolution
800 x 480 pixels (WVGA)
Effective display area
W219.6 x H131.76 mm [W8.645 x H5.187 in.]
Display colors
65,536 colors
Backlight
LED
Backlight service life
20,000 hrs. or more (each in continuous operation at 25 °C [77 °F] before backlight brightness decreases to 50%)
Brightness control
8 Levels (Adjusted with touch panel)
Touch panel type
Resistive Film (analog)
Touch panel lifetime
1,000,000 times or more, Sweeping 100,000 times or more
Language fonts
ASCII: (code page 850) alphanumeric (including European characters)
Chinese (simplified): GB2312-80 codes
Japanese: ANK 158, Kanji: 6,962 (JIS standards 1 & 2) (including 607 nonkanji characters)
Korean: (KSC5601 - 1992 codes) Hangul fonts
Chinese (traditional): BIG 5 codes
Character sizes
8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts
Font sizes
Width can be expanded 1, 2, 4, and 8 times. Height can be expanded 1/2, 1, 2, 4, and 8 times.
8 x 8 dots
40 char. x 30 rows
8 x 16 dots
40 char. x 15 rows
16 x 16 dots
20 char. x 15 rows
32 x 32 dots
10 char. x 7 rows
Electrical specifications
Rated input voltage
24 Vdc
Allowable voltage drop
1 ms or less with lowest input voltage, 10 ms or less with rated input voltage
Power consumption
5W
In-rush current
50 A or less
Voltage endurance
600 Vac, 20 mA for 1 minute
Insulation resistance
500 Vdc, 10 MΩ or more (between power terminal and FG terminals)
Environmental specifications
International safety standards
CE
Surrounding air temperature
0 to 50 °C [32 to 122 °F]
Storage temperature
-20 to +60 °C [-4 to 140 °F]
Ambient humidity
85 % RH (Wet bulb temperature: 39 °C [102.2 °F] max. - no condensation)
Storage humidity
10% to 90% RH (Non condensing, wet bulb temperature 39 °C [102.2 °F] or less)
Dust
0.1 mg/m3 (10-7 oz/ft3) or less (non-conductive levels)
Pollution degree
For use in Pollution Degree 2 environment
Corrosive gases
Free of corrosive gases
Air pressure (altitude range)
2,000 m [6,561 ft.] max.
Vibration resistance
IEC/EN60068-2-6, 5 to 150 Hz, 3.5 mm (0.38 in) max., 1gn pm 3 axes
Concussion resistance
IEC 60068-2-27, 1/2 sinusoidal pulse for 11 ms, 15g on 3 axes
Electrostatic discharge immunity
EN/IEC 61131-2, 4 kV direct contact, 8 kV air contact
Electromagnetic compatibility (EMC)
IEC 61000 - 4 - 5, 0.5 kV (Differential Mode on power supply), 1 kV (Common Mode on power supply)
Memory
Application memory
FLASH EPROM 8 MB
Backup memory
FLASH EPROM 128 KB
Clock accuracy
Variations in operating conditions and battery life can cause a clock inaccuracy from -380 to +90 seconds per month.
Interface specifications
Serial (COM1)
Asynchronous Transmission: RS-232C, Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits, Parity: None, Even or Odd, Data Transmission Speed: 2,400 to 115,200 bps, Connector: D-Sub 9 (plug)
Serial (COM2)
Asynchronous Transmission: RS-422 / 485, Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits, Parity: None, Even or Odd, Data Transmission Speed: 2,400 to 187,500 bps, Connector: D-Sub 9 pin (plug)
USB (Type A)
Conforms to USB 2.0 (Type A) x 1
Communication distance: 5 m [16.4 ft.] or less
USB (mini-B)
Conforms to USB (mini-B) x 1, Used in Project file upload/download
Structural specifications
Grounding
Functional grounding: Grounding resistance of 0.1 Ω, 2mm2 (AWG 14).
Cooling method
Natural air circulation
Structure
Front Panel: IP65 (IEC60529), Enclosure type 4 indoor use only (UL 50) with screw installation fasteners, Rear Panel: IP20 (IEC 60529)
External dimensions
W275.8 x H206.8 x D59.8 mm [W10.85 x H8.14 x D2.35 in.]
Dimensions

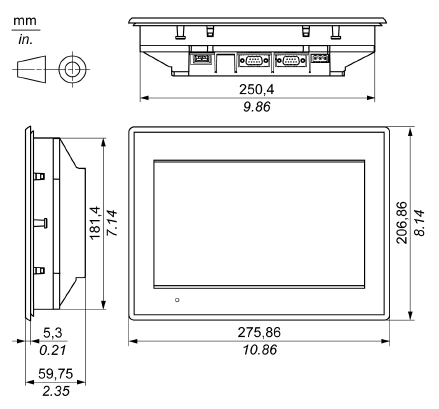

External dimensions
Panel cut-out dimensions


A B C (Panel Thickness) R
255±1.8 mm (10.04±0.07 in.) 185±1 mm (7.28±0.04 in.) 1.5 to 10 mm
(0.06 to 0.39 in.)		 3 mm
(0.12 in.) max.

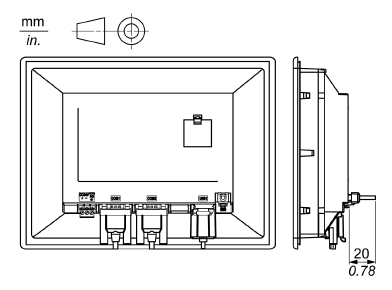

External dimensions with cable
