PFXPPD5700WP (PS-D5700WP)

Standard product information
Family
Industrial PC (IPC)
Series
PS5000 Series
Size
15" Wide
Model
PFXPPD5700WP
Global Code
PFXPPD5700WP
Product Features
Ecran 15 pouces Wide
Industrial PC specifications
Graphics
FWXGA TFT (1,366 x 768 pixels)
Display specifications
Display Type
TFT Color LCD
Display Size
15.6" Wide
Display Colors
16.7 million colors
Backlight
LED
Backlight service life
50,000 hrs. at 25 °C [77 °F]
Brightness Control
Step less adjustment
Touch Panel Type
Capacitive (5 simultaneous touch)
Touch Panel Resolution
4,096 x 4,096
Electrical specifications
Rated Input Voltage
DC: 24 Vdc ±20 %
AC: 100 to 240 Vac (Option)*1
Power Consumption
14.5 W or less

1For use at 100 to 240 Vac, an optional AC / DC power adapter (PFXZPSPUAC2, PFXZPBPUAC2) that is separately sold is required.

Environmental specifications
International Safety Standards
CCCCEC-TickEACKCUL,cUL (60950) Listed
Surrounding Air Temperature
0 to 55 °C [32 to 131 °F]
Ambient Humidity
10 to 95 % RH (Wet bulb temperature: 40 °C [104 °F] max. - no condensation)
Storage Humidity
10 to 95 % RH (Wet bulb temperature: 40 °C [104 °F] max. - no condensation)
Pollution Degree
For use in Pollution Degree 2 environment
Air pressure (altitude range)
2,000 m [6,561 ft.] max.
Vibration resistance
5 to 500 Hz: 2 Grms
Concussion resistance
IEC 60068-2-27 Ea test
Electromagnetic Compatibility (EMC)
Immunity to High Frequency Interference
Electromagnetic Emissions Class A
Structural specifications
Cooling method
Natural air circulation
Protective structure
IP66 / Nema 4x indoor
External dimensions
W419.7 x H269 x D28 mm [W16.52 x H10.59 x D1.10 in.]
Panel cut dimensions
W412.4 x H261.7 mm [W16.24 x H10.30 in.]
Weight
4.3 kg [9.50 lb]
Dimensions
External installation diagram






Panel cut dimensions



A B C R
412.4 ±0.7mm
[16.24 ±0.03 in.]		 261.7 ±0.4mm
[10.30 ±0.02 in.]		 2 to 6mm
[0.08 to 0.24 in.]		 5mm
[0.20 in.]

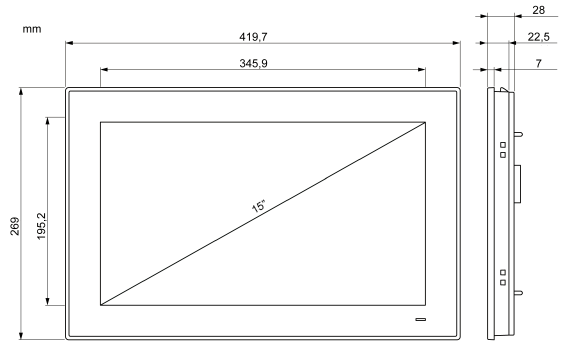

External dimensions with attached cable / Descriptions

(1) Panel (W15" multi-touch) (2) Multi-touch panel (3) Status indicator (4) Panel connector for the Box or Display Adapter (G1) Removal panel guide for the Box Atom (S1) Mounting hole for the Box Atom (G2) Removal panel guide for the Box Celeron/Core i7 or Display Adapter (S2) Mounting hole for the Box Celeron/Core i7 or Display Adapter (V) Mounting hole for the VESA (PFXZPBADVS02 or PFXZPBADVS22) kit
