PFXSTW6700WAD

Standard product information
Family
Web HMI
Series
STW6000 Series
Size
15" Wide
Model
PFXSTW6700WAD
Global Code
PFXSTW6700WAD
Display specifications
Display type
TFT Color LCD
Display size
15.6" Wide
Resolution
1,366 x 768 pixels (FWXGA)
Effective display area
W344.23 x H193.54 mm [W13.55 x H7.62 in.]
Display colors
16 million colors*1
Backlight
White LED (Not user replaceable. When replacement is required, contact your local distributor.)
Backlight service life
50,000 hrs. or more (each in continuous operation at 25 °C [77 °F] before backlight brightness decreases to 25%)
Brightness control
16 Levels (Adjusted with touch panel)
Touch panel type
Resistive Film (analog, single-touch)
Touch panel resolution
1,024 x 1,024
Touch panel lifetime
1,000,000 times or more
CPU
ARM Cortex A8 800MHz
Browser
Chromium Browser

1For details about Display colors, refer to the manual for your screen editing software.

Electrical specifications
Rated input voltage
24 Vdc
Input voltage limits
19.2 to 28.8 Vdc
Allowable voltage drop
10 ms or less
Power consumption
Max. 18.5 W
When power is not supplied to external devices: 15 W or less
When screen turns off the backlight (standby mode): 5.4 W or less
In-rush current
30 A or less
Voltage endurance
1,000 Vac, 20 mA for 1 minute (between power terminal and FG terminals)
Insulation resistance
500 Vdc, 10 MΩ or more (between power terminal and FG terminals)
Environmental specifications
International safety standards
CEUKCAUL,cUL (508) ListedEACKCC-Tick
Surrounding air temperature
0 to 50 °C [32 to 122 °F]
Storage temperature
-20 to +60 °C [-4 to 140 °F]
Dust
0.1 mg/m3 (10-7 oz/ft3) or less (non-conductive levels)
Pollution degree
For use in Pollution Degree 2 environment
Corrosive gases
Free of corrosive gases
Air pressure (altitude range)
800 to 1,114 hPa (2,000 m [6,561 ft.] above sea level or less)
Vibration resistance
IEC/EN 61131-2 compliant
5 to 9 Hz single amplitude 3.5 mm [0.14 in.]
9 to 150 Hz fixed acceleration: 9.8 m/s2
X, Y, Z directions for 10 cycles (approx. 100 min.)
Concussion resistance
IEC/EN 61131-2 compliant 147 m/s2, X, Y, Z directions for 3 times
Electrical fast transient/burst
IEC 61000-4-4
2 kV: Power port (display unit)
1 kV: Signal ports
Electrostatic discharge immunity
Contact Discharge Method: 6 kV
Air Discharge Method: 8 kV
(IEC/EN61000-4-2 Level 3)
Interface specifications
USB (Type A)
Conforms to USB 2.0 (Type A) x 1
Power supply voltage: 5 Vdc ±5 %
Output Current: 500 mA or less
Communication distance: 5 m [16.4 ft.] or less
USB (micro-B)
--The USB (micro-B) interface is disabled.
Ethernet
IEEE802.3i / IEEE802.3u, 10BASE-T / 100BASE-TX, Connector: Modular jack (RJ-45) x 2*1

1ETH1 and ETH2 have the same IP address and MAC address.

Structural specifications
Grounding
Functional grounding: Grounding resistance of 100 Ω, 2mm2 (AWG 14) or thicker wire, or your country's applicable standard. (Same for FG and SG terminals)
Cooling method
Natural air circulation
Structure
IP65F, Type 1, Type 4X (indoor use only), Type 13 (on the front panel when properly installed in an enclosure)*1
External dimensions
W412 x H268 x D50 mm [W16.22 x H10.55 x D1.97 in.]
Panel cut-out dimensions
W394 x H250 mm [W15.51 x H9.84 in.]
Panel thickness area: 1.6 to 5 mm [0.06 to 0.2 in.]*2
Weight
2.7 kg [5.95 lb] or less

1For dimensional tolerance, everything +1/-0 mm (+0.04/-0 in) and R in angle are below R3 (R0.12 in)

2For dimensional tolerance, everything +1/-0 mm [+0.04/-0 in.] and R in angle are below R3 [R0.12 in.]. Even if the installation wall thickness is within the recommended range for the "Panel Cut Dimensions", depending on wall's material, size, and installation location of GP unit and other devices, the installation wall could warp. To prevent warping, the installation surface may need to be strengthened.

Dimensions

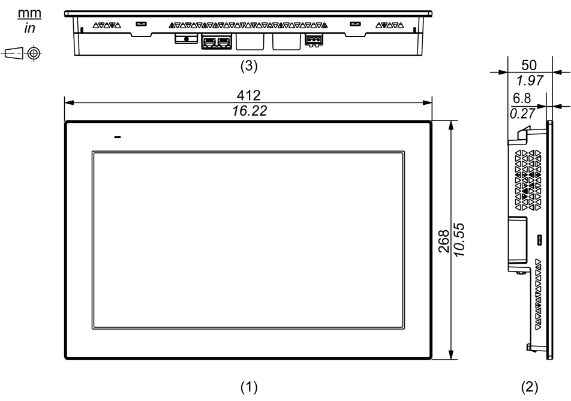

External dimensions
  1. Front
  2. Left
  3. Bottom
Panel cut-out dimensions
A B C
394 mm (+1/0 mm)
(15.51 in. [+0.04/0 in.])		 250 mm (+1/0 mm)
(9.84 in. [+0.04/0 in.])		 1.6 to 5 mm
(0.06 to 0.2 in.)

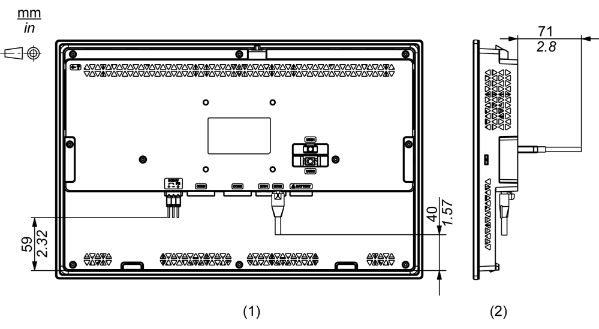

External dimensions with cable
  1. Rear
  2. Right
