Details
Supported Connection Devices
| Manufacturer | Product Name | Series | Note |
|---|---|---|---|
| IAI Corporation | EC ELECYLINDER® | - | EC-□□（□□）-□-□-（□） □:Depend on various types |
Target HMI
| Series | Resolution | Display unit type of the sample project file*1 | Screen Editor |
|---|---|---|---|
| GP4000 Series SP5000 Series ST6000 Series STM6000 Series | 640 x 480 dot（VGA） | GP-4501T（Analog Touch Panel） | GP-Pro EX Ver.4.00.000 or later *ST6000 series only GP-Pro EX Ver 4.09.250 or later *STM6000 series only GP-Pro EX Ver 4.09.350 or later |
| 800 x 480 dot（WVGA）*2 | Box Module：SP-5B10 Display Module：SP-5400WA | ||
| GP4000 Series LT4000 Series | 320 x 240 dot（QVGA） | GP-4301T |
*1If you use the other models, you can change a model in the GP-Pro EX project file. For details, please refer to the Technical Guide.
*2For WVGA (800×480 pixels),there is function button area at the right of the screen. Please read the manual, "Functions Added to Sample Project File for SP5000 Wide Model".
Features

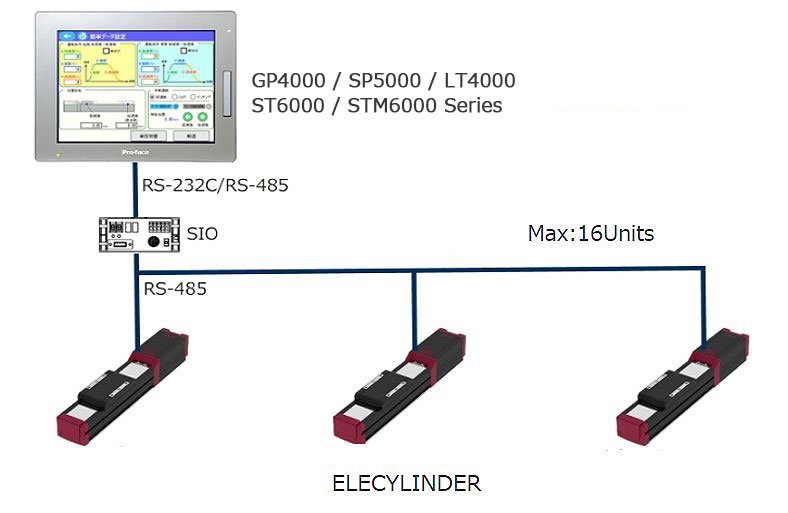

This sample project file is for connecting IAI ELECYLINDER to GP4000 / SP5000 / LT4000 / ST6000 / STM6000 series. The following functions are provided for more convenient use of the ELECYLINDER.- Checking setting status of up to 16 ELECYLINDERs
- Easily configuring forward and backward settings of the ELECYLINDER and the position settings
- Checking setting status of every ELECYLINDER one by one when checking settings
- Configuring settings of axis numbers and names
- Manual mode –JOG operation and Inching -
- Homing is possible when it is not completed
We do not guarantee that the operation of this sample will be uninterrupted or error-free.
Terms of use / Cautions
Please acknowledge the following terms of use before you use our download service.Download of any file signifies your agreement to the terms of use.
Terms and conditions
Download file
For GP-4501T / VGA (640×480)
8.29 MB (8,689,382 Byte)
For SP-5400WA / WVGA(800*480)
8.42 MB (8,834,096 Byte)
For GP-4301T / QVGA(320*240)
7.30 MB (7,650,669 Byte)
Update History
[Rev05] (2022/11/18)
- Support STM6000 Series
- ELECYLINDER Ultra-Mini type and Rotary Large type added
[Rev04] (2021/7/30)
- Support ST6000 Series
- ELECYLINDER Gripper type added
[Rev03] (2020/10/19)
- Support Global site
- ELECYLINDER Rotary type added
[Rev02] (2020/07/30)
- Support LT4000 Series
[Rev01] (2019/11/1)
- New Release
Summary
This sample project file is for connecting IAI ELECYLINDER to GP4000 / SP5000 / LT4000 / ST6000 / STM6000 series. The following functions are provided for more convenient use of the ELECYLINDER.
