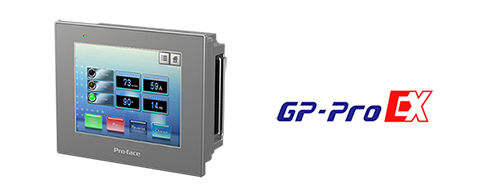

| STC-6300TA | ||
|---|---|---|
| Digital output sink type | Digital output source type | |
| Model No | PFXSTC6300TADDKE | PFXSTC6300TADDCE |
| Display | 5.7” (VGA) / 262K colors / Resistive film (analog) | |
| Interface | RS-232C/422/485 (D-Sub 9 pin) x 1 Ethernet1 IEEE802.3i / IEEE802.3u, 10BASE-T / 100BASE-TX x 1 USB host type A x 1, USB device Micro B x 1 DIO interface x 1, Expansion module interface x 1 | |
| Built-in I/O | DIO: Inputs: 16 / Outputs: 16 High-Speed Counter / Pulse Catch Input: Single phase (4-point) / 2 phase (1-point or 2-point) Pulse / PWM Output: 4-point | |
| External I/O | Rear mounting: Modicon TM3 Module: Max 2 units Extension mounting: Modicon TM3 Module: Max 8 units *Required Transmitter(TM3XTRA1) and Receiver(TM3XREC1) <Supported Modicon TM3 Module> | |
| Certification | CE, UL, cULus, cULus Class 1 Division 2, RMC, KC, EAC, ATEX/IECEx, Marine, RoHS, WEEE | |
| Details | Specifications | |
