PFXST6300TADE

제품 기본 정보
제품 카테고리
HMI
시리즈
ST6000 Series
화면 사이즈
5”
모델
PFXST6300TAD
글로벌 코드
PFXST6300TAD
제품 특징
5.7" DC Analog
디스플레이 표시 사양
디스플레이 타입
TFT Color LCD
표시 사이즈
5.7"
화면 해상도
640 x 480 pixels (VGA)
유효 표시 사이즈
W115.2 x H86.4 mm [W4.54 x H3.40 in.]
표시 색상
262,144 colors*1
백라이트
White LED (Not user replaceable. When replacement is required, contact customer support.)
백라이트 수명
50,000 hrs. or more (each in continuous operation at 25 °C [77 °F] before backlight brightness decreases to 25%)
조도 조정
16 Levels (Adjusted with touch panel or software)
터치 패널 방식
Resistive Film (analog, single-touch)
터치 패널 해상도
1,024 x 1,024
터치 패널 수명
1,000,000 times or more

1디스플레이 색상에 대한 자세한 내용은, 사용하시는 화면 편집용 소프트웨어의 매뉴얼을 참조하여 주시기 바랍니다.

전기 사양
정격 전압
24 Vdc
허용 전압 범위
19.2 to 28.8 Vdc
순간 정전 허용 시간 범위
5 ms or less
소비전력
Max. 8.9 W
When power is not supplied to external devices: 5.71 W or less
When screen turns off the backlight (standby mode): 3.26 W or less
In-Rush Current: 30A or less
돌입 전류
30 A or less
내소음성
Noise Voltage : 1,000 Vp-p
Pulse Duration : 1 µs
Rise Time : 1 ns
(via noise simulator)
절연내력
1,000 Vac, 20 mA for 1 minute (between charging and FG terminals)
절연저항
500 Vdc, 10 MΩ or more
환경 사양
해외 안전 규격
CEcULuscULus Class 1 Division 2ATEXIECExEACKCC-TickEU RO MR
사용 환경 온도
0 to 50 °C [32 to 122 °F]
보관 온도
-20 to +60 °C [-4 to 140 °F]
사용 환경 습도
10% to 90% RH (Non condensing, wet bulb temperature 39 °C [102.2 °F] or less)
보관 습도
10% to 90% RH (Non condensing, wet bulb temperature 39 °C [102.2 °F] or less)
먼지
0.1 mg/m3 (10-7 oz/ft3) or less (non-conductive levels)
오염도
For use in Pollution Degree 2 environment
부식성 가스
Free of corrosive gases
대기압 (사용 고도)
800 to 1,114 hPa (2,000 m [6,561 ft.] above sea level or less)
내진동
IEC/EN 61131-2 compliant
5 to 9 Hz single amplitude 3.5 mm [0.14 in.]
9 to 150 Hz fixed acceleration: 9.8 m/s2
X, Y, Z directions for 10 cycles (approx. 100 min.)
내충격성
IEC/EN 61131-2 compliant 147 m/s2, X, Y, Z directions for 3 times
내소음성 (Fast transient burst noise)
IEC 61000-4-4
2 kV: Power port (display unit)
1 kV: Signal ports
내정전기방전
Contact Discharge Method: 6 kV
Air Discharge Method: 8 kV
(IEC/EN61000-4-2 Level 3)
메모리
어플리케이션 메모리
When using GP-Pro EX:
- Media: FLASH EPROM
- Screen Area: 64MB *Use the screen area when the user font area's capacity is exceeded - for example, when an image font or a picture font is used.
- User Font Area: 8MB
- Logic Program Area: 132KB (Equivalent to 15,000 steps)
- Free Space: None

Removable System: No
데이터 백업
When using GP-Pro EX:
- Screen Area: SRAM 320KB
- Variable Area: SRAM 64KB

Battery: Replaceable battery / Primary battery for clock data backup
인터페이스 사양
시리얼 (COM1)
RS-232C, 비동기식, 데이터 길이 : 7/8비트, 스톱비트 : 1/2비트, 패리티: 없음/홀수/짝수, 전송 속도 : 2,400bps～115.2kbps, 커넥터 : D-Sub 9핀 플러그
시리얼 (COM2)
Asynchronous Transmission: RS-422 / 485, Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits, Parity: None, Even or Odd, Data Transmission Speed: 2,400 to 115,200 bps, Connector: D-Sub 9 pin (plug)
USB (Type A)
Conforms to USB 2.0 (Type A) x 1
Power supply voltage: 5 Vdc ±5 %
Output Current: 500 mA/port
Maximum transmission distance : 5 m [16.4 ft.]
USB (micro-B)
Conforms to USB 2.0 (micro-B) x 1, Maximum transmission distance : 5 m [16.4 ft]
이더넷
IEEE802.3i / IEEE802.3u, 10BASE-T / 100BASE-TX, Connector: Modular jack (RJ-45) x 1
설치 사양
접지
Functional grounding: Grounding resistance of 100 Ω, 2 mm2 (AWG 14) or thicker wire, or your country’s applicable standard.
냉각 방법
Natural air circulation
보호 구조
IP65F, UL 50/50E, Type 1, Type 4X (indoor use only),
Type 13 (on the front panel when properly installed in an enclosure)
외관 사이즈
W169.5 x H137 x D58 mm [W6.67 x H5.39 x D2.28 in.]
패널컷 사이즈
W156 x H123.5 mm [W6.14 x H4.86 in.]
Panel thickness area: 1.6 to 5 mm [0.06 to 0.2 in.]*1
질량
0.8 kg [1.76 lb] or less

1Even if the installation wall thickness is within the recommended range for the Panel Cut Dimensions, depending on the wall's material, size, and installation location of this product and other devices, the installation wall could warp. To prevent warping, the installation surface may need to be strengthened.

외관도

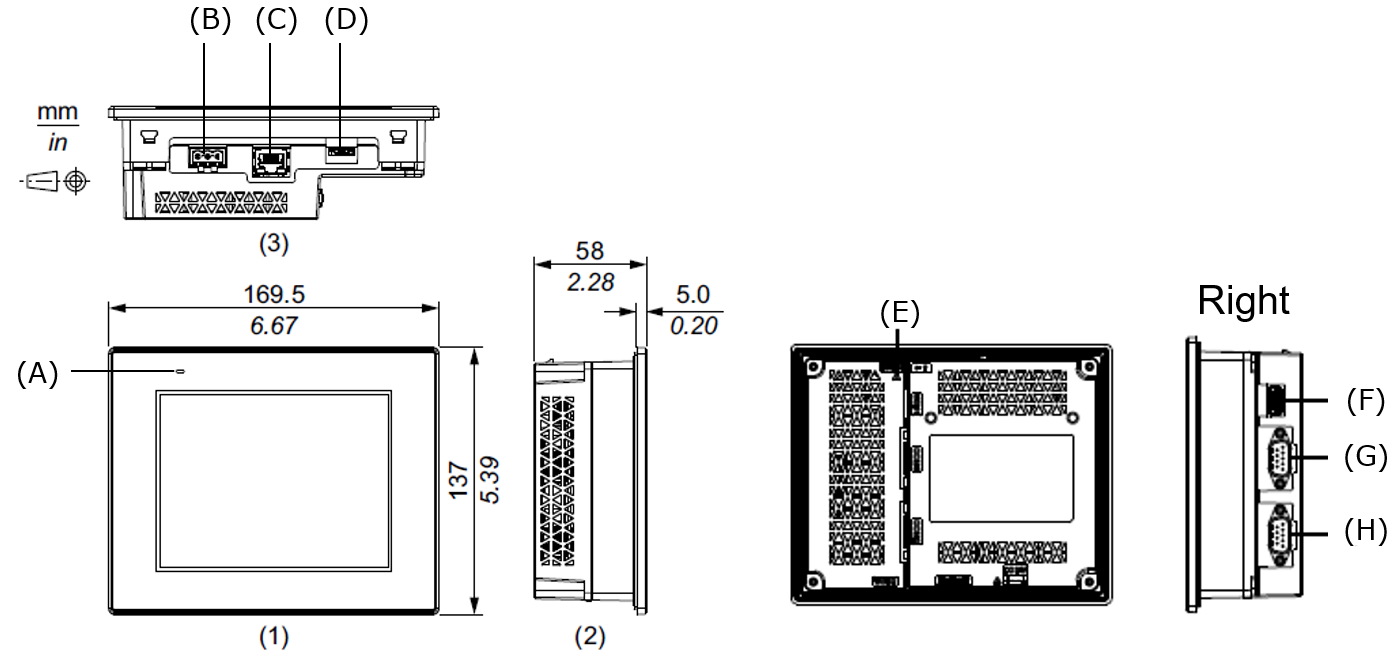

외관 사이즈
(1) Front
(2) Left
(3) Bottom

A Status LED
B Power plug connector
C Ethernet interface
D USB (micro-B) interface
E Safety alert symbol
F USB (Type A) interface
G Serial interface (RS-232C)(COM1)
H Serial interface (RS-422/485)(COM2)
패널컷 사이즈
A B C
156 mm (+1/-0 mm)
(6.14 in [+0.04/-0 in])		 227.5 mm (+1/-0 mm)
(8.96 in [+0.04/-0 in])		 1.6 to 5 mm
(0.06 to 0.2 in.)

When installing ST-6200WA with spring clips:
Position 1:1.5…4 mm
(0.06..0.16 in)
Position 2:4…6 mm
(0.06..0.24 in)
