PFXPU27xxxxxxxxx00 (PS-5700T, Celeron model)

제품 기본 정보
제품 카테고리
Industrial PC (IPC)
시리즈
PS 5000 시리즈
화면 사이즈
15"
모델
PFXPU27xxxxxxxxx00
글로벌 코드
PFXPU27xxxxxxxxx00
제품 특징
15" modular Type (Celeron)
End of sales
2022.01.31
End of repair
2022.03.31
Repair Service Remark
-
Replacement option 1
Replacement code 1
PFXP6CFxxxxxxxxxxx
Replacement code 1 comment
PS6000 시리즈 (15"Wide + Advanced Box Celeron model)
The panel cut-out size, the external dimensions, and the specifications differ. 자세한 내용은 "교체서"를 참조하십시오.
산업용 PC 사양
Supported OS
Windows 7 Ultimate (64 bit)
Windows Embedded Standard 7 (32 bit/64 bit) MUI
Windows Embedded 8.1 Industry (64 bit)
Windows 10 IoT Enterprise 2016 LTSB (Software Version: 3.0 or less) *
Windows 10 IoT Enterprise 2019 LTSC (Software Version: 4.0 or later) *
* OS Version depends on the Software version
CPU
Intel Celeron 2980U 1.6 GHz
메인 메모리
8 GB / 16 GB, DDR3L 1600 MHz, SO-DIMM SDRAM
512 KB NVRAM for the user applications
Storage Memory
HDD (500GB / 1TB) / SSD (256GB) x 2, CFast (16GB / 32GB) x 1*1
그래픽 가속기
Intel HD Graphics
비디오 메모리
Up to 2 GB, Shared system memory
그래픽
XGA TFT (1,024 x 768 pixels)

1For use with HDD or SDD, an option unit (PFXZPBADHDD2) that is separately sold is required.

디스플레이 표시 사양
표시 사이즈
15"
표시 색상
16.7 million colors
백라이트
LED
백라이트 수명
50,000 hrs. at 25 °C [77 °F]
조도 조정
Step less adjustment
터치 패널 타입
Resistive Film (single touch)
터치 패널 해상도
2,048 x 2,048
전기 사양
정격 전압
DC: 24 Vdc ±20 %
AC: 100 to 240 Vac (Option)
소비 전력
39.9 W (Max. 48.04 W)
돌입 전류
8.9 A
환경 사양
해외 안전 규격
CCCCEC-TickEACATEXKCUL,cUL (60950) ListedUL,cUL (61010) ListedANSI/CSA (UL61010+1604) Listed
사용 환경 온도
When using SSD / CFast running: 0 to 55 °C [32 to 131 °F]
When using HDD running: 0 to 45 °C [32 to 113 °F]
When using PCI/PCIe: 0 to 45 °C [32 to 113 °F]
When using internal expansion x2 + display module: 0 to 45 °C [32 to 113 °F]
When using Gigabit Ethernet PoE interface card for internal expansion: 0 to 45 °C [32 to 113 °F]
보관 온도
-30 to +70 °C [-22 to 158 °F]
사용 환경 온도
10 to 95 % RH (Wet bulb temperature: 40 °C [104 °F] max. - no condensation)
보관 습도
10 to 95 % RH (Wet bulb temperature: 40 °C [104 °F] max. - no condensation)
오염도
For use in Pollution Degree 2 environment
대기압 (사용 고도)
2,000 m [6,561 ft.] max.
내진동
[Operation for products with SSD or CF card storage device] 5 to 500 Hz: 2 Grms
[Operation for products with HDD storage device] 5 to 500 Hz: 1 Grms
내충격성
IEC 60068-2-27 Ea test
전자기 환경 적합성 (EMC)
Immunity to High Frequency Interference
Electromagnetic Emissions Class A
인터페이스 사양
시리얼 (COM1)
RS-232C / 422 / 485, Connector: D-Sub 9 pin (plug)
USB Type A
Conforms to USB 3.0 (Type A) x 2
Conforms to USB 2.0 (Type A) x 2
Conforms to USB 2.0 (Type A) x 1 (front side)
이더넷 (LAN1)
10 / 100 / 1000 Mbit/s (RJ-45 Modular jack)
이더넷（LAN2）
10 / 100 / 1000 Mbit/s (RJ-45 Modular jack)
Video
Display Port x 1
확장 슬롯
PCIe(x1) x 1 + PCIe(x4) x 1 / PCI x 2 / PCI x 1 + PCIe(x4) x 1*1
내부 확장
mini PCIe x 2

1Only when selecting 2 slots. Only for use in that the total power consumption of two PCI/PCIe cards is 12W or less, or the power consumption of one PCI/PCIe card is 10W or less.

설치 사양
냉각 방법
Passive heat sink*1
보호 구조
IP66 front side of display
설치 방식
Panel mounting
VESA Arm mounting (for 0 slot models)
외관 사이즈
0 slot type: W390.7 x H290 x D93.2 mm [W15.38 x H11.42 x D3.67 in.]
2 slot type: W390.7 x H290 x D131.2 mm [W15.38 x H11.42 x D5.16 in.]
패널 컷 사이즈
W383.5 x H282.5 mm [W15.10 x H11.12 in.]
질량
0 slot type: 7.3 kg [16 lb]
2 slot type: 8.1 kg [17.8 lb]

1The operating temperature is limited to 45 °C [113 °F] and the cooling FAN is required for PCI / PCIe cards installed on board with power consumption from 3 W to 6 W maximum for two cards or 10 W maximum for one card.

외관도
외형 도면

Display Module


Box Module

0 Slot Type

2 Slot Type

패널 컷 사이즈
A B C R
383.5 ±0.7 mm
[15.09 ±0.03 in.]		 282.5 ±0.4 mm
[11.12 ±0.02 in.]		 2 to 6 mm
[0.08 to 0.23 in.]		 5 mm
[0.20 in.]
케이블 장착시 외관도 / 각각의 명칭

Description

Display Module

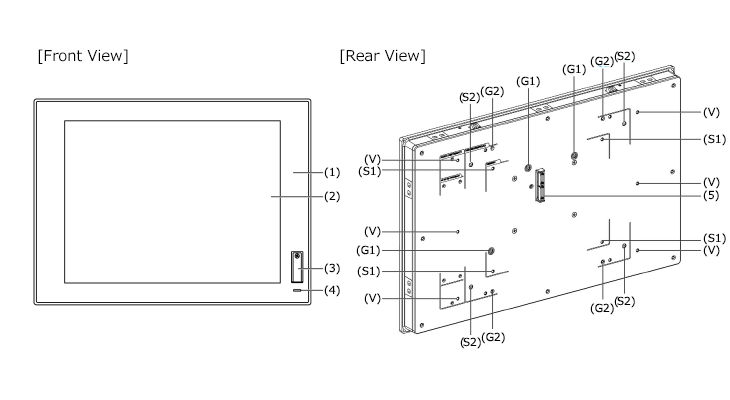

(1) Panel (W19" multi-touch) (2) Multi-touch panel (3) Status indicator (4) Panel connector for the Box or Display Adapter (G1) Removal panel guide for the Box Atom (S1) Mounting hole for the Box Atom (G2) Removal panel guide for the Box Celeron/Core i7 or Display Adapter (S2) Mounting hole for the Box Celeron/Core i7 or Display Adapter (V) Mounting hole for the VESA (PFXZPBADVS02 or PFXZPBADVS22) kit

Box Module

0 Slot Type


(1) DisplayPort 2 (2) Slide-in CFast slot (3) LEDs and power/reset button (4) HDD/SSD 1 (can be RAID configuration) (5) HDD/SSD 2 (can be RAID configuration) (6) SMA connector for the wiereless LAN external antenna (7) SMA connector for the GPRS external antenna (8) SMA connector for the wiereless LAN external antenna (9) DC power connector (10) Optional interface 1 (11) DisplayPort 1 (12) Eth1 (10/100/1000 Mbit/s) IEEE1588 (13) Eth2 (10/100/1000 Mbit/s) IEEE1588 (14) USB1 and USB2 (USB 3.0) (15) USB3 and USB4 (USB 2.0) (16) Optional interface 2 (17) COM1 port RS-232/RS-422/RS485 (isolated) (18) Ground connection pin



2 Slot Type

(1) DisplayPort 2 (2) Slide-in CFast slot (3) LEDs and power/reset button (4) HDD/SSD 1 (can be RAID configuration) (5) HDD/SSD 2 (can be RAID configuration) (6) SMA connector for the wiereless LAN external antenna (7) SMA connector for the GPRS external antenna (8) SMA connector for the wiereless LAN external antenna (9) DC power connector (10) Optional interface 1 (11) DisplayPort 1 (12) Eth1 (10/100/1000 Mbit/s) IEEE1588 (13) Eth2 (10/100/1000 Mbit/s) IEEE1588 (14) USB1 and USB2 (USB 3.0) (15) USB3 and USB4 (USB 2.0) (16) PCI/PCIe (peripheral component interconnect express) slots (17) Optional interface 2 (18) COM1 port RS-232/RS-422/RS485 (isolated) (19) Ground connection pin
